ZJ-5235AB 7.5 kW Medical Blister Sealing Machine
The ZJ-5235AB medical blister sealing machine is a 7.5 kW pneumatic sealer with PLC control and electronic temperature control. It is recorded for medical sterile packaging and a 380 V supply.
Sample Display
Zhenjia Machinery provides sample proofing service, and offers complete production process guidance and customized production solutions. If you need to check processed samples and product details, please contact us for physical samples or high-definition sample pictures to intuitively experience the processing accuracy and product effect of our machine.
Our Certificate
Mold Supporting Service
This machine can be equipped with various specifications of molds, suitable for processing products of different sizes and types. All molds are made of high-quality wear-resistant materials. We can provide customized molds according to customer product specifications, and offer professional mold maintenance guidance to extend mold service life and ensure continuous production.
Packaging & Delivery
The ZJ-5235AB medical blister sealing machine is a 7.5 kW pneumatic sealer with PLC control and electronic temperature control. It is recorded for medical sterile packaging and a 380 V supply. The machine is a PLC blister sealer for medical paper and film samples; Tyvek blister sealing and sterile blister packaging claims require validation with the actual materials and sterilization process. Confirm tooling and output before quotation.

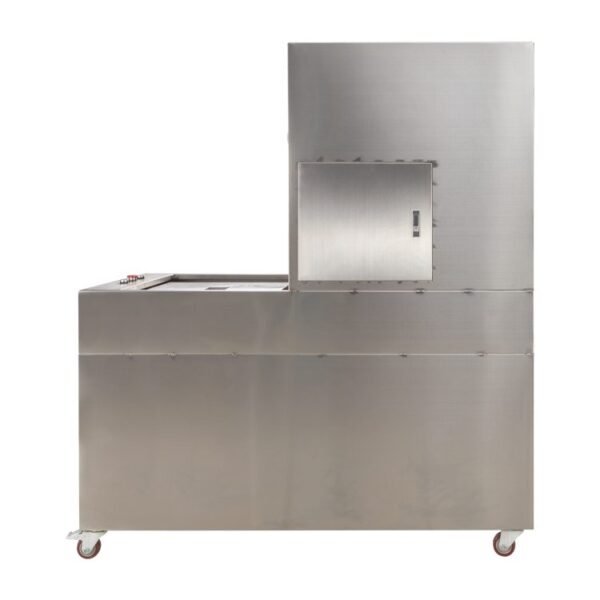

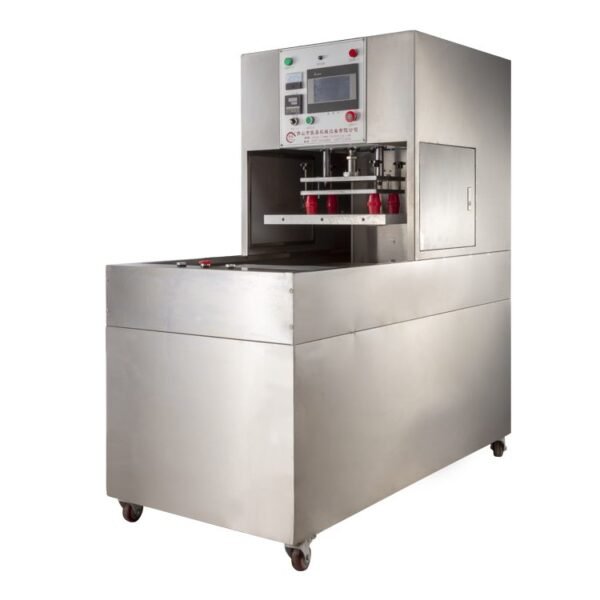

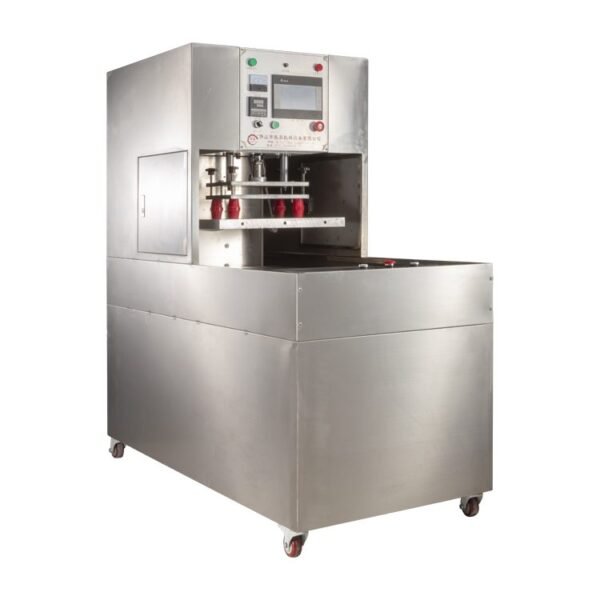

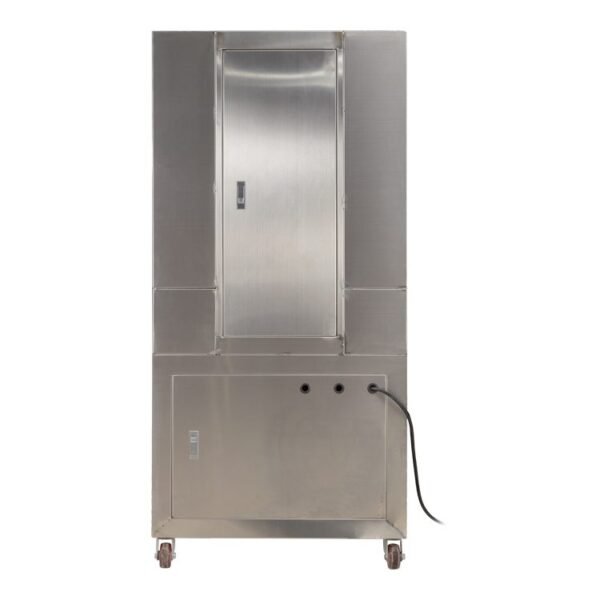

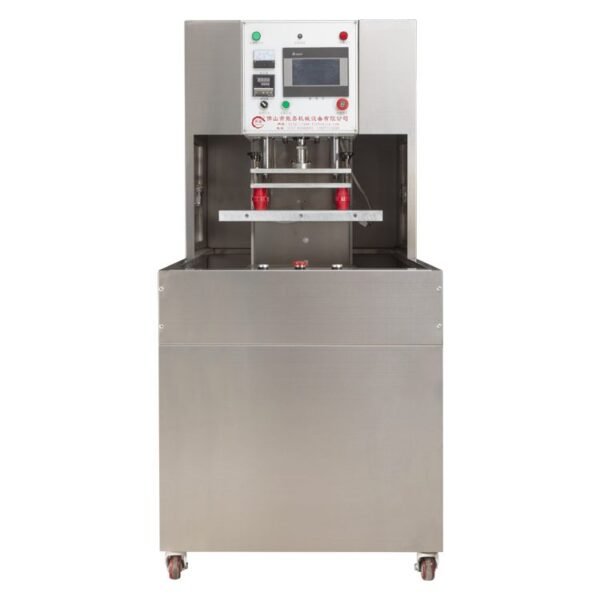

ZJ-5235AB Medical Blister Sealing Machine: Specifications & Electrical Configuration
| Model | ZJ-5235AB |
|---|---|
| Configuration | Medical blister sealing |
| Rated power | 7.5 kW |
| Drive | Pneumatic |
| Power supply | 380 V |
| Control | PLC touchscreen |
| Temperature | Electronic temperature control |
| Materials | Medical paper / film to be confirmed |
| Table / output | Not specified; confirm with tooling and sample run |
Material & Application Compatibility
Medical paper, film and Tyvek blister sealing samples should be tested with the actual tooling. Sterile blister packaging is a system-level claim; the machine supports the sealing step but does not guarantee sterility by itself.
5235AB, 6540AB or Six-Station?
The three medical models differ in power, pressure system and station count. They should be selected against the medical packaging sample.
| Point | ZJ-5235AB | ZJ-6540AB | ZJ Six six-station |
|---|---|---|---|
| Power | 7.5 kW | 9 kW | 8 kW |
| Drive | Pneumatic | Oil-pressure boost | Pneumatic |
| Stations | Not specified | Not specified | Six |
| Supply | 380 V | 380 V | 380 V |
| Typical fit | Standard medical sealing | Pressure-boost medical sealing | Six-station sequence |
How to choose:
- Choose 5235AB for a standard pneumatic medical sealing configuration.
- Choose 6540AB when pressure boost and stainless steel construction are required.
- Choose the six-station model when the sequence needs six stations.
Installation Notes for Malaysia, Indonesia and Vietnam
The recorded supply is 380 V. Confirm frequency, plug standard and site voltage before shipment.
- Voltage stability: confirm whether a stabilizer is required.
- Humidity and heat: plan ventilation and moisture control around the electrical cabinet.
- Grounding: verify the factory earth before commissioning.
- Air supply: pneumatic models require pressure and consumption to be confirmed.
- Certification: check SIRIM (Malaysia), SNI (Indonesia), QCVN/TCVN (Vietnam) or CE scope for this exact model; do not claim without a certificate.
Safety & Routine Maintenance
⚠️ CRITICAL SAFETY NOTICE: Before changing tooling, clearing a jam or opening any guard, isolate the main power, lock it out and bleed residual pneumatic or hydraulic pressure. Adjustments to the sealing head or electrical cabinet should be made by trained personnel; other operators should not open the cabinet. Confirm the lockout procedure and pressure values in the machine manual.
- At each shift start, verify the emergency stop and guard interlocks.
- Inspect pneumatic or hydraulic lines and fittings for leaks.
- Keep the sealing head and platen clean; remove film, paper and card debris.
- Follow the manufacturer schedule for lubrication, filter replacement and electrical inspection.
Configuration Check Before Quotation
A useful configuration check covers:
- Blister shell material, thickness and drawing;
- Paper card or medical paper material, coating and print finish;
- Required card size and tooling envelope;
- Target output range and shift pattern;
- Site voltage, frequency and air supply;
- Destination country and required certification.
Selection FAQ
Is this a sterile packaging machine?
It supports the sealing step for medical packaging; sterility depends on the full packaging and sterilization validation.
Can it seal Tyvek?
Tyvek blister sealing should be tested with the actual medical paper, film and tooling.
What is the output?
Not fixed by the model code; validate with a sample run.
What voltage?
380 V is recorded; confirm frequency and site voltage.
