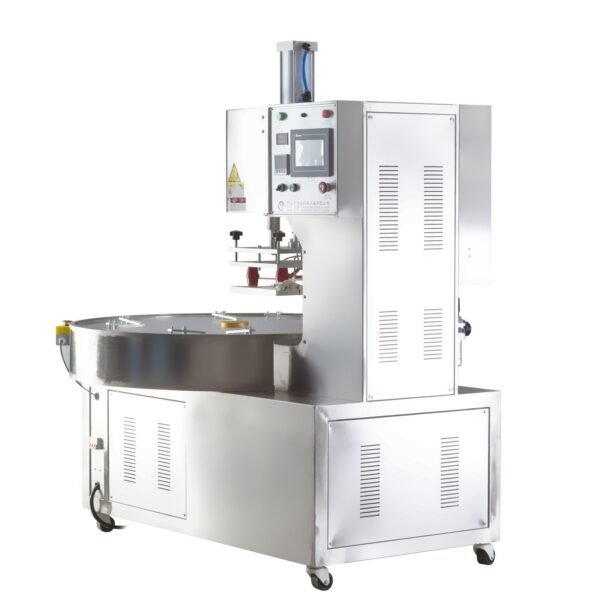

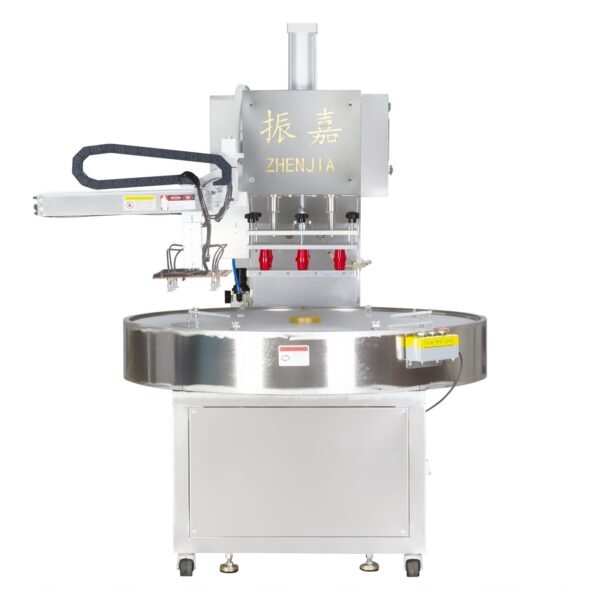

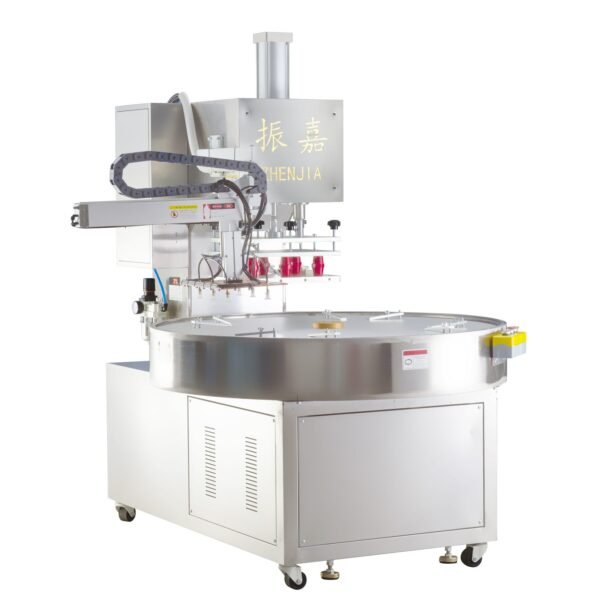

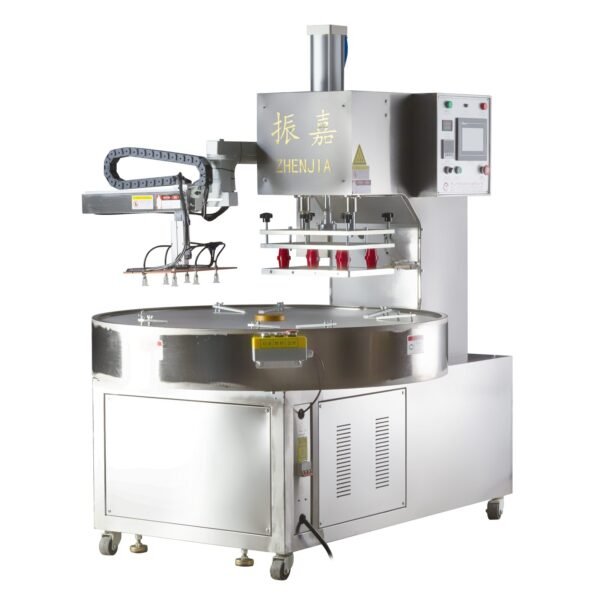

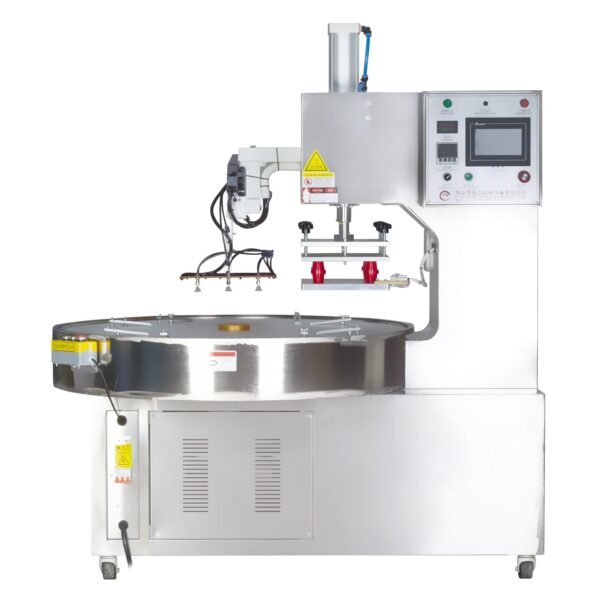

ZJ Six 8 kW Six-Station Medical Blister Sealing Machine
The ZJ Six six-station medical blister sealing machine is a PLC blister sealer with an 8 kW pneumatic sealing system and a six-station table. It is recorded for a medical-grade sealing standard and 380 V supply.
Sample Display
Zhenjia Machinery provides sample proofing service, and offers complete production process guidance and customized production solutions. If you need to check processed samples and product details, please contact us for physical samples or high-definition sample pictures to intuitively experience the processing accuracy and product effect of our machine.
Our Certificate
Mold Supporting Service
This machine can be equipped with various specifications of molds, suitable for processing products of different sizes and types. All molds are made of high-quality wear-resistant materials. We can provide customized molds according to customer product specifications, and offer professional mold maintenance guidance to extend mold service life and ensure continuous production.
Packaging & Delivery
The ZJ Six six-station medical blister sealing machine is a PLC blister sealer with an 8 kW pneumatic sealing system and a six-station table. It is recorded for a medical-grade sealing standard and 380 V supply. Medical paper, film and Tyvek blister sealing samples should be validated before a compatibility claim is published. The six-station layout is intended for a repeated medical packaging sequence.
ZJ Six Six-Station Medical Blister Sealing Machine: Specifications & Electrical Configuration
| Model | ZJ Six |
|---|---|
| Configuration | Six-station medical |
| Rated power | 8 kW |
| Stations | Six |
| Drive | Pneumatic |
| Power supply | 380 V |
| Control | PLC touchscreen |
| Materials | Medical paper / film to be confirmed with samples |
| Table / output | Not specified; confirm with tooling and sample run |
Material & Application Compatibility
The record does not list a fixed medical material set. Tyvek blister sealing, medical paper and coated film should be tested with the actual tooling. Sterile blister packaging claims require validation with the converter and the sterilization process; the machine alone does not guarantee sterility.
Six-Station, 5235AB or 6540AB?
The three medical models differ in station count, power and pressure system. They are not interchangeable without a sample review.
| Point | ZJ Six six-station | ZJ-5235AB | ZJ-6540AB |
|---|---|---|---|
| Power | 8 kW | 7.5 kW | 9 kW |
| Stations | Six | Not specified | Not specified |
| Drive | Pneumatic | Pneumatic | Oil-pressure boost |
| Supply | 380 V | 380 V | 380 V |
| Typical fit | Repeated six-station medical sequence | Standard medical sealing | Pressure-boost medical sealing |
How to choose:
- Choose the six-station model when the packaging sequence needs six stations.
- Choose 5235AB for a standard pneumatic medical sealing configuration.
- Choose 6540AB when a pressure-boost system is required; confirm with samples.
Installation Notes for Malaysia, Indonesia and Vietnam
The recorded supply is 380 V. Confirm frequency, plug standard and site voltage before shipment.
- Voltage stability: confirm whether a stabilizer is required.
- Humidity and heat: plan ventilation and moisture control around the electrical cabinet.
- Grounding: verify the factory earth before commissioning.
- Air supply: pneumatic models require pressure and consumption to be confirmed.
- Certification: check SIRIM (Malaysia), SNI (Indonesia), QCVN/TCVN (Vietnam) or CE scope for this exact model; do not claim without a certificate.
Safety & Routine Maintenance
⚠️ CRITICAL SAFETY NOTICE: Before changing tooling, clearing a jam or opening any guard, isolate the main power, lock it out and bleed residual pneumatic or hydraulic pressure. Adjustments to the sealing head or electrical cabinet should be made by trained personnel; other operators should not open the cabinet. Confirm the lockout procedure and pressure values in the machine manual.
- At each shift start, verify the emergency stop and guard interlocks.
- Inspect pneumatic or hydraulic lines and fittings for leaks.
- Keep the sealing head and platen clean; remove film, paper and card debris.
- Follow the manufacturer schedule for lubrication, filter replacement and electrical inspection.
Configuration Check Before Quotation
A useful configuration check covers:
- Blister shell material, thickness and drawing;
- Paper card or medical paper material, coating and print finish;
- Required card size and tooling envelope;
- Target output range and shift pattern;
- Site voltage, frequency and air supply;
- Destination country and required certification.
Selection FAQ
Is this machine suitable for Tyvek?
Tyvek blister sealing must be tested with the actual medical paper, film and tooling; the record does not certify a material.
Does it guarantee sterile packaging?
No. It supports a medical sealing process; sterility depends on the full packaging and sterilization validation.
What is the output?
Not fixed by the model code; validate with a six-station sample run.
What voltage?
380 V is recorded; confirm frequency and site voltage.
