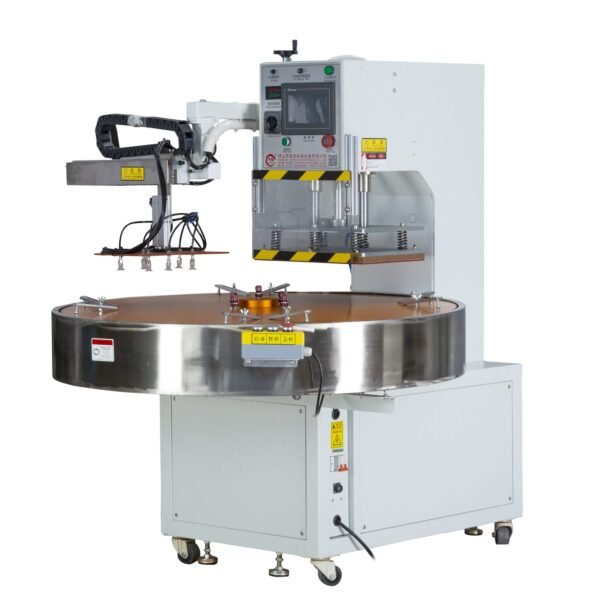

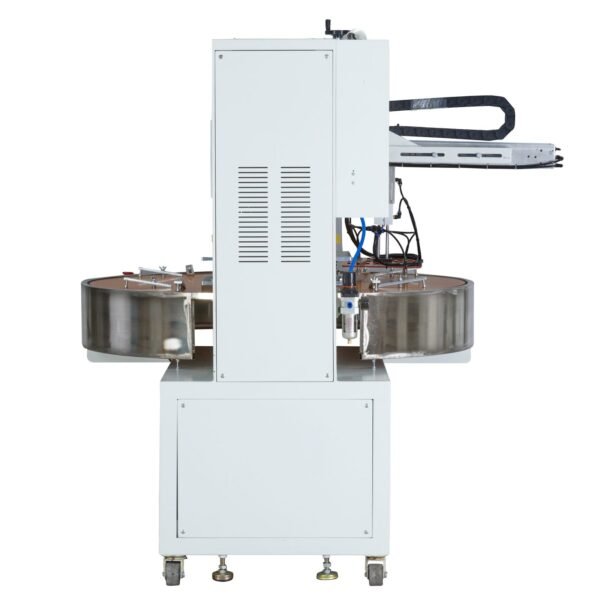

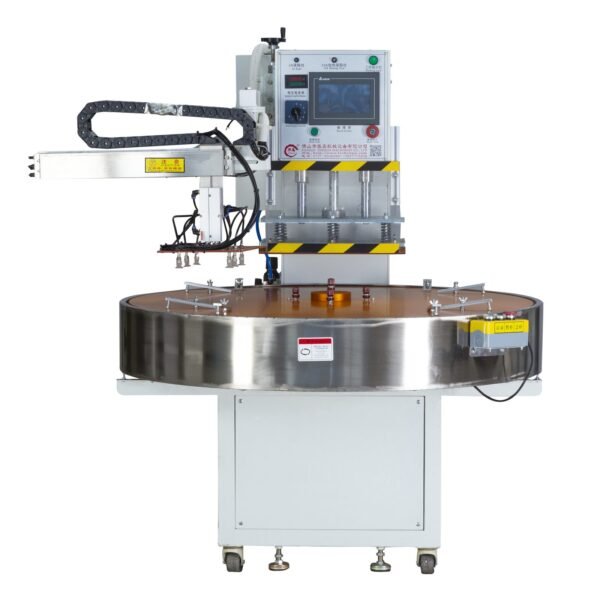

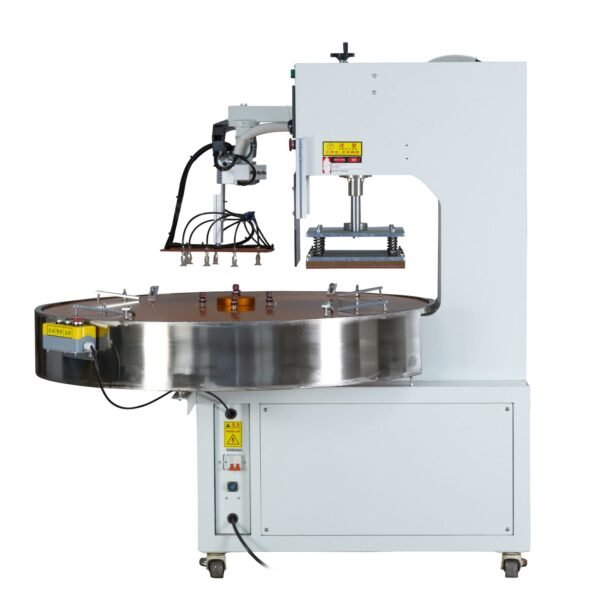

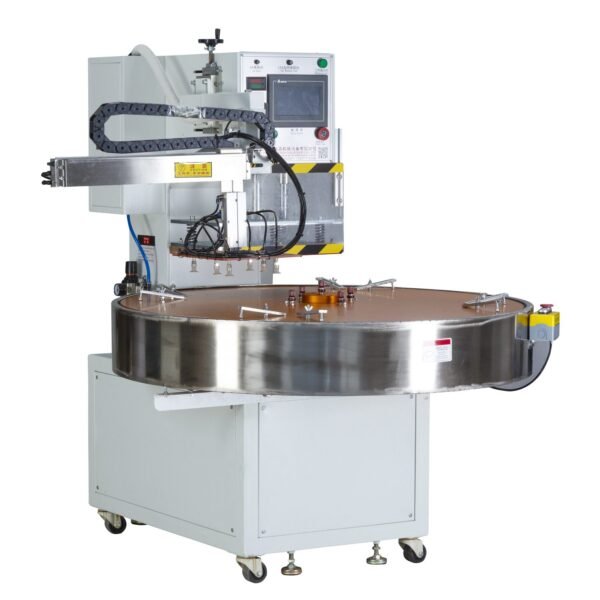

ZJ-50A 5 kW Single-Manipulator Blister Sealing Machine
The ZJ-50A single-manipulator blister sealing machine is a 5 kW automatic blister sealer for blister shells and paper cards. It uses one manipulator with a three- or four-station table and a recorded 220 V supply.
Sample Display
Zhenjia Machinery provides sample proofing service, and offers complete production process guidance and customized production solutions. If you need to check processed samples and product details, please contact us for physical samples or high-definition sample pictures to intuitively experience the processing accuracy and product effect of our machine.
Our Certificate
Mold Supporting Service
This machine can be equipped with various specifications of molds, suitable for processing products of different sizes and types. All molds are made of high-quality wear-resistant materials. We can provide customized molds according to customer product specifications, and offer professional mold maintenance guidance to extend mold service life and ensure continuous production.
Packaging & Delivery
The ZJ-50A single-manipulator blister sealing machine is a 5 kW automatic blister sealer for blister shells and paper cards. It uses one manipulator with a three- or four-station table and a recorded 220 V supply. For buyers in Malaysia, Indonesia and Vietnam, the main check is whether a one-arm loading pattern matches the card format and labour model. Material compatibility and output should be confirmed with a sample run.
ZJ-50A Single-Manipulator Blister Sealing Machine: Specifications & Electrical Configuration
| Model | ZJ-50A |
|---|---|
| Configuration | Single manipulator |
| Rated power | 5 kW |
| Stations | Three or four |
| Drive | Pneumatic |
| Table diameter | 1,000 mm / 1,200 mm |
| Power supply | 220 V |
| Materials | Blister shell and paper card |
| Sealing area / air pressure | Not specified; confirm with tooling and installation data |
Material & Application Compatibility
The recorded materials are blister shells and printed paper cards. PET, PETG, PVC and coated cards should be tested with the actual shell, card and tooling before a compatibility claim is published. This unit is a general blister card sealing machine, not a medical packaging model.
Single or Dual Manipulator?
The single- and dual-manipulator ZJ-50A share the same 5 kW platform. The ZJ-50A blister sealing machine uses one arm in the single version; the dual version uses two.
| Point | ZJ-50A single | ZJ-50A dual |
|---|---|---|
| Manipulators | One | Two |
| Stations | Three or four | Four |
| Table diameter | 1,000 / 1,200 mm | 1,200 mm |
| Loading pattern | One-arm pick-and-place | Two-arm pick-and-place |
| Typical fit | Simpler loading sequence | Higher automation with two arms |
How to choose:
- Choose the single-arm version when the card is presented from one position.
- Choose the dual version when the tooling and labour model support two-arm loading.
- Confirm card size, shell material and target voltage before quotation.
Installation Notes for Malaysia, Indonesia and Vietnam
The recorded supply is 220 V. Confirm frequency, plug standard and site voltage before shipment.
- Voltage stability: confirm whether a stabilizer is required.
- Humidity and heat: plan ventilation and moisture control around the electrical cabinet.
- Grounding: verify the factory earth before commissioning.
- Air supply: pneumatic models require pressure and consumption to be confirmed.
- Certification: check SIRIM (Malaysia), SNI (Indonesia), QCVN/TCVN (Vietnam) or CE scope for this exact model; do not claim without a certificate.
Safety & Routine Maintenance
⚠️ CRITICAL SAFETY NOTICE: Before changing tooling, clearing a jam or opening any guard, isolate the main power, lock it out and bleed residual pneumatic or hydraulic pressure. Adjustments to the sealing head or electrical cabinet should be made by trained personnel; other operators should not open the cabinet. Confirm the lockout procedure and pressure values in the machine manual.
- At each shift start, verify the emergency stop and guard interlocks.
- Inspect pneumatic or hydraulic lines and fittings for leaks.
- Keep the sealing head and platen clean; remove film, paper and card debris.
- Follow the manufacturer schedule for lubrication, filter replacement and electrical inspection.
Configuration Check Before Quotation
A useful configuration check covers:
- Blister shell material, thickness and drawing;
- Paper card or medical paper material, coating and print finish;
- Required card size and tooling envelope;
- Target output range and shift pattern;
- Site voltage, frequency and air supply;
- Destination country and required certification.
Selection FAQ
What is the difference between the single- and dual-manipulator ZJ-50A?
The single version uses one manipulator with three- or four-station options. The dual version uses two manipulators with a four-station, 1,200 mm table. Both are 5 kW and 220 V.
Can it seal PET or PETG?
The current record names blister shells and paper cards without listing polymers. Test PET, PETG, PVC and coated cards with the actual tooling.
What is the output rate?
Output depends on card size, station usage and sample validation; it is not fixed by the model code.
What voltage does it use?
The recorded supply is 220 V. Confirm frequency and site voltage for Malaysia, Indonesia or Vietnam.
