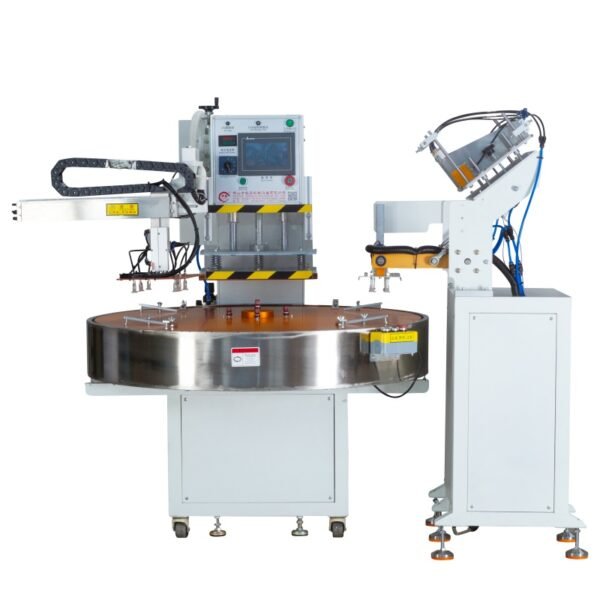

ZJ-50A blister sealing machine with two manipulators view 1

ZJ-50A blister sealing machine detail view 5

Double Manipulator PVC Packaging Blister Sealing Machine

The Zhenjia Double Manipulator PVC Packaging Blister Sealing Machine is an advanced industrial solution featuring a 4-station automatic rotary table and dual robotic arms. Designed to maximize production efficiency and reduce labor costs, this machine provides high-precision sealing for PVC, PET, and TPU materials. With its integrated PLC touch screen and parallel vacuum sucker technology, it ensures stable output and superior aesthetic quality for battery, hardware, and toy packaging applications.

Categories: Blister Packaging Machine, Blister Sealing Machine

Sample Display

Zhenjia Machinery provides sample proofing service, and offers complete production process guidance and customized production solutions. If you need to check processed samples and product details, please contact us for physical samples or high-definition sample pictures to intuitively experience the processing accuracy and product effect of our machine.

Eyelash Curler - HF Welder — Eyelash Curler – HF Welder

Our Certificate

Mold Supporting Service

This machine can be equipped with various specifications of molds, suitable for processing products of different sizes and types. All molds are made of high-quality wear-resistant materials. We can provide customized molds according to customer product specifications, and offer professional mold maintenance guidance to extend mold service life and ensure continuous production.

Double-Sided Blister Packaging and High-Frequency Molds

Packaging & Delivery

Double Manipulator PVC Packaging Blister Sealing Machine

The Double Manipulator PVC Packaging Blister Sealing Machine by Zhenjia Machine represents a significant advancement in automated packaging technology. Engineered for high-volume industrial environments, this machine integrates a 360-degree automatic rotary table with a dual-manipulator system to streamline the blister sealing process. By automating the feeding and retrieval stages, manufacturers can achieve a substantial increase in production throughput while maintaining rigorous quality standards.

Advanced Automation with Double Manipulator System

The core differentiator of this model is its integrated double manipulator system. These robotic arms are designed to replace manual labor, ensuring that the production cycle remains consistent regardless of operator shifts or fatigue. The use of manipulators provides two primary advantages to the production line:

Increased Efficiency: The working efficiency of the Double Manipulator PVC Packaging Blister Sealing Machine is approximately 50% higher than that of manual blister sealing machines. This allows for a stable, high-speed output that meets the demands of large-scale manufacturing.
Product Integrity: Manual handling of freshly sealed blisters can often lead to bending or deformation, as the plastic edges may not have completely cooled. The manipulators utilize parallel vacuum suckers to lift and move the workpieces. This ensures the welding edges remain smooth and undistorted, significantly improving the aesthetic quality of the final package.

Precision Control via PLC Touch Screen

To facilitate ease of operation, the machine is equipped with a high-performance PLC touch screen interface. This centralized control system allows operators to manage critical parameters with precision. Key functionalities include:

Temperature and Timing: Operators can adjust heating times and sealing temperatures quickly to accommodate different material thicknesses and types.
Real-time Diagnostics: In the event of a mechanical or electrical interruption, the PLC touch screen provides immediate feedback on the nature of the failure. This diagnostic capability reduces downtime by allowing maintenance teams to identify and resolve issues rapidly.
User-Friendly Interface: The intuitive layout ensures that even new operators can master the machine’s functions with minimal training, further reducing labor-related overhead.

Rotary Table Workflow and Construction

The machine utilizes a 4-position rotary table that operates on a 360-degree rotation cycle. This configuration allows for simultaneous operations across different stations, such as loading, sealing, cooling, and unloading. The automatic rotation ensures a seamless transition between stages, minimizing idle time and maximizing the utilization of the heating elements.

Customized Tooling and Molds

Recognizing that every product has unique dimensions, Zhenjia Machine offers fully customized molds for the Double Manipulator PVC Packaging Blister Sealing Machine. These molds are precision-engineered based on the customer’s specific product samples and the machine’s power specifications. Whether you are packaging small hardware components or larger consumer electronics, the tooling is tailored to ensure a perfect hermetic seal every time.

Technical Specifications

The following table outlines the technical parameters and specifications for the Double Manipulator PVC Packaging Blister Sealing Machine. Please note that certain values are configured based on specific customer requirements.

Feature	Specification
Machine Type	Automatic Rotary Blister Sealing Machine
Number of Manipulators	2 (Double Manipulator)
Rotary Table Positions	4 Working Positions
Rotation Angle	360 Degrees
Control System	PLC Touch Screen
Compatible Materials	PVC, PET, PU, TPU, PE, PETG, APET
Certifications	EU CE, ISO9001
Feeding Mechanism	Parallel Vacuum Sucker
Power Output	Not specified (Configured per product)
Machine Dimensions	Not specified
Operating Pressure	Not specified

Material Compatibility and Industrial Applications

This versatile sealing machine is compatible with a wide range of thermoplastic materials commonly used in the packaging industry. It is particularly effective for sealing PVC, PET, PU, TPU, PE, PETG, and APET. Its robust sealing capabilities make it an ideal choice for various sectors, including:

Battery Packaging: Securely sealing button cells or cylindrical batteries in protective blisters.
Hardware Tools: Packaging heavy or sharp items like drill bits, wrenches, and fasteners.
Toy Industry: Creating attractive and durable retail packaging for small to medium-sized toys.
Consumer Electronics: Protecting sensitive components and accessories from environmental factors.

Quality Assurance and Safety

Zhenjia Machine adheres to international quality standards, and this model is fully compliant with EU CE and ISO9001 certifications. These certifications reflect our commitment to manufacturing safety, reliability, and consistent performance.

Safety Warning: Industrial blister sealing equipment involves high temperatures and mechanical moving parts. Only trained personnel should operate the machine. Ensure all safety guards are in place and the emergency stop remains accessible at all times during operation. Regular maintenance of the vacuum suckers and rotary table is required to prevent mechanical failure.
