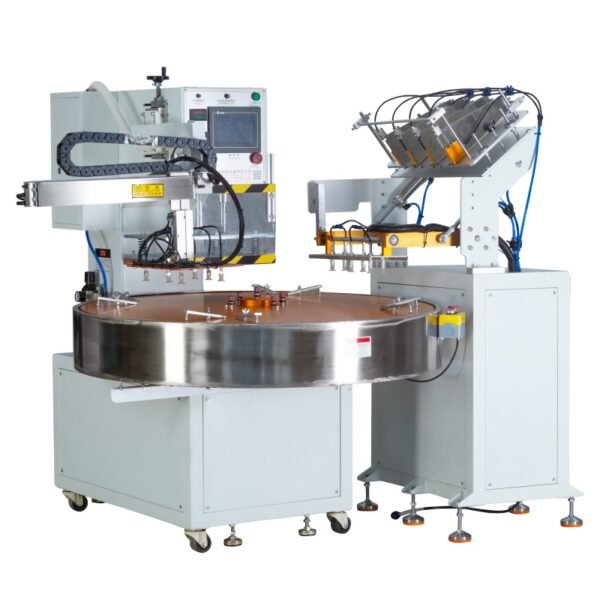

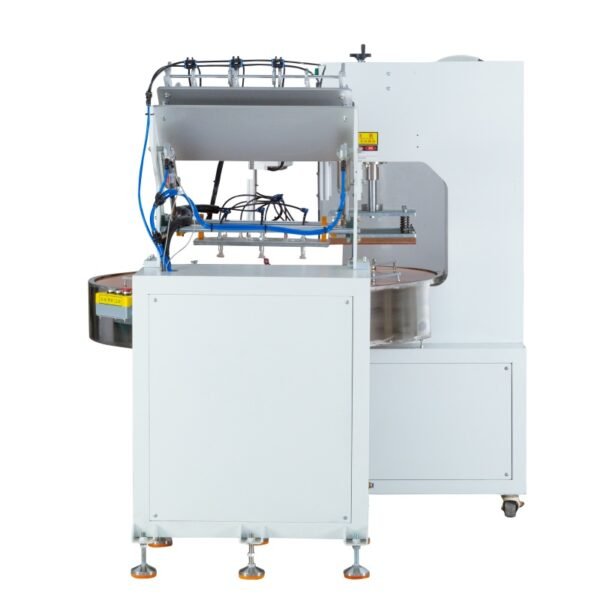

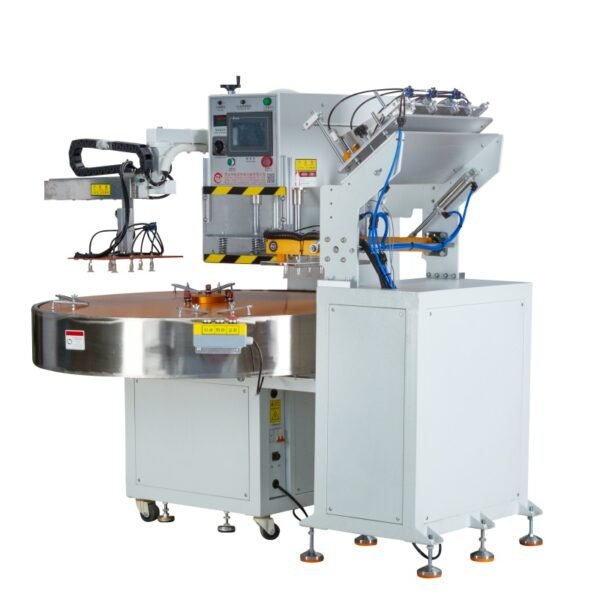

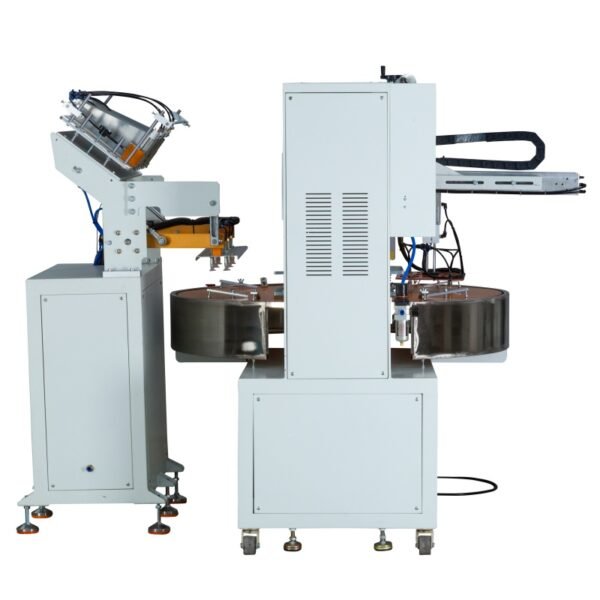

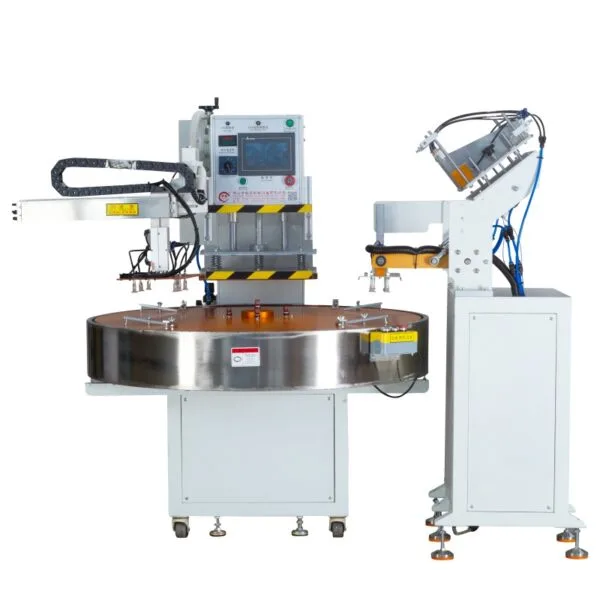

Double Manipulator Battery Packaging Blister Sealing Machine

The Double Manipulator Battery Packaging Blister Sealing Machine from Zhenjia Machine represents a significant advancement in automated packaging technology. Specifically engineered for high-demand production environments, this machine integrates a high-speed automatic rotary table with dual robotic manipulators to streamline the blister sealing process. By automating the material handling and sealing cycles, manufacturers can achieve superior consistency, reduced labor costs, and significantly higher throughput in battery, hardware, and toy packaging applications.

Advanced Rotary Table and Four-Position Workflow

At the core of the Double Manipulator Battery Packaging Blister Sealing Machine is a precision-engineered 360-degree automatic rotary table. This system is divided into four distinct working positions, allowing for a continuous, synchronized workflow. While one station is undergoing the sealing process, other stations are simultaneously being loaded or unloaded by the manipulators. This multi-station design eliminates the downtime associated with single-station manual machines, ensuring that the machine is constantly in operation.

Dual Manipulator Automation for Enhanced Efficiency

The integration of two robotic manipulators is the primary differentiator of this model. These manipulators serve two critical functions in the production line:

• Labor Reduction: The automatic feeding and extraction system replaces manual labor, allowing a single operator to oversee multiple machines or focus on quality control.
• Increased Output: The working efficiency of the Double Manipulator Battery Packaging Blister Sealing Machine is approximately 50% higher than that of manual blister sealing alternatives. Because the robotic arms operate at a constant speed, production rates remain stable throughout the shift, unaffected by operator fatigue or turnover.
• Product Quality Preservation: One of the most common issues in manual sealing is the deformation of the workpiece when handled before the plastic has fully cooled. Zhenjia’s manipulators utilize parallel vacuum suckers to lift the material. This ensures the welding edges remain smooth, flat, and aesthetically pleasing, greatly improving the overall quality of the finished battery pack.

PLC Touch Screen Control and Diagnostics

To meet the requirements of modern Industry 4.0 standards, the machine is equipped with a sophisticated PLC (Programmable Logic Controller) touch screen interface. This centralized control system allows operators to adjust critical parameters with high precision.

Key Control Features:

• Temperature Regulation: Digital control ensures that the heating elements maintain the exact temperature required for different plastic types, preventing burnt edges or weak seals.
• Heating Time Adjustment: Operators can fine-tune the sealing duration to the millisecond, optimizing the cycle time for various material thicknesses.
• Real-Time Diagnostics: In the event of a mechanical or electrical interruption, the PLC touch screen provides immediate feedback on the nature of the failure. This diagnostic capability significantly reduces troubleshooting time and simplifies maintenance for factory technicians.

Material Compatibility and Industrial Applications

The Double Manipulator Battery Packaging Blister Sealing Machine is a versatile platform capable of processing a wide range of thermoplastic materials. It is designed to work seamlessly with:

• PVC and PET: The most common materials for retail battery and hardware packaging.
• PU and TPU: Ideal for specialized industrial components.
• PE, PETG, and APET: Suitable for eco-friendly or high-clarity packaging requirements.

While optimized for battery packaging, the machine’s customizable mold system makes it an ideal choice for hardware tools, electronic components, and toy packaging. Zhenjia Machine provides custom mold design services to ensure the tooling perfectly matches the dimensions and contours of the customer’s specific product.

Technical Specifications

Customized Solutions for Your Production Line

Zhenjia Machine understands that every packaging requirement is unique. Our Double Manipulator Battery Packaging Blister Sealing Machine can be configured with different power ratings and styles depending on the specific dimensions and material of your product. All molds are custom-built to ensure a perfect seal every time.

Double Manipulator Battery Packaging Blister Sealing Machine: selection and next steps

When comparing a Double Manipulator Battery Packaging Blister Sealing Machine, confirm the material, tooling, cycle time and site voltage before quotation. A Double Manipulator Battery Packaging Blister Sealing Machine should be matched to the actual product, output target and operator model, not only to the machine size.
