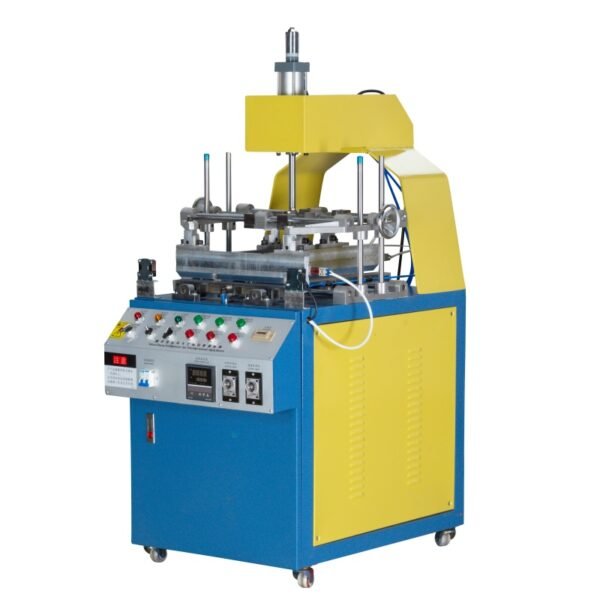

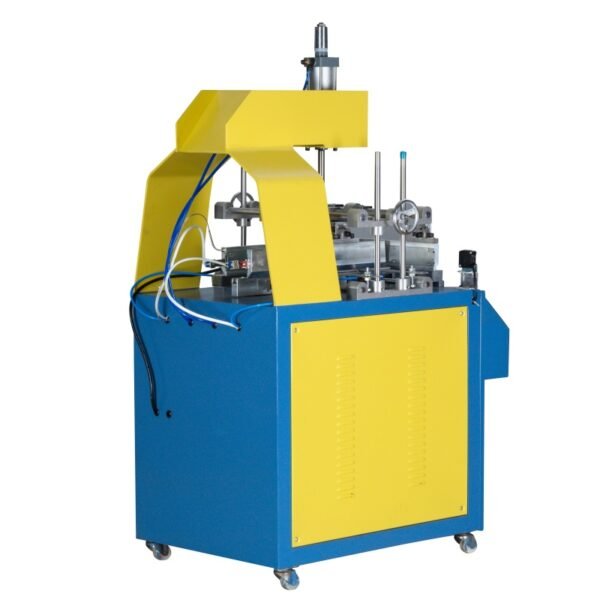

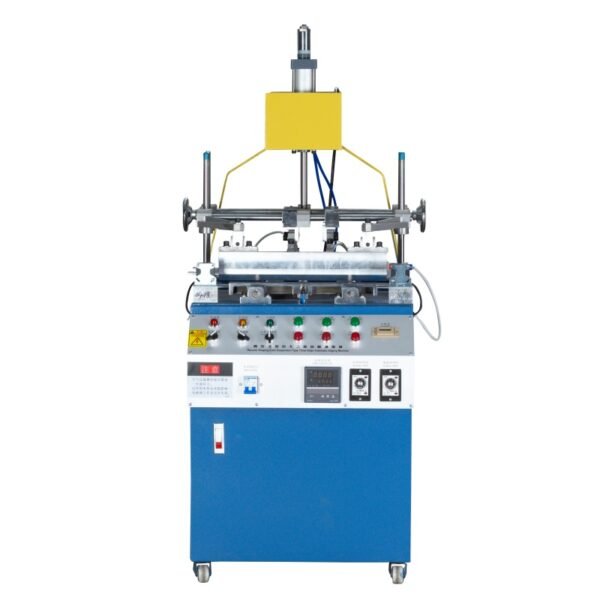

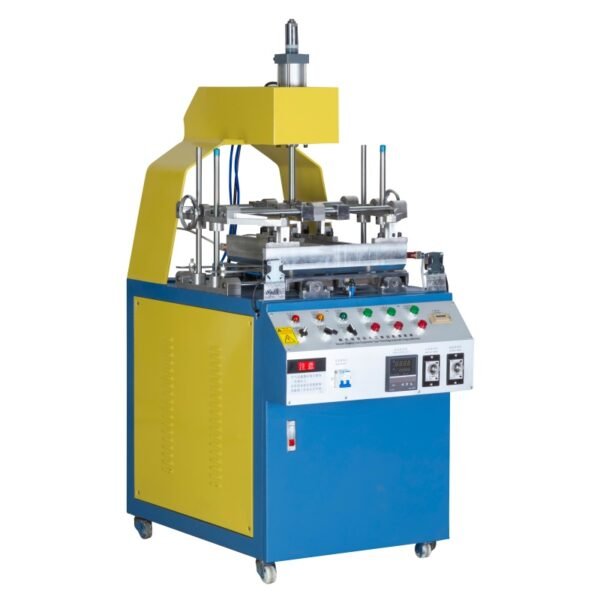

PVC Blister Folding Machine

The PVC Blister Folding Machine is a high-automation industrial solution designed for the precise three-side folding of blister covers and plastic hard sheets. Engineered by Zhenjia Machine, this equipment features independent temperature controls for each heating plate and integrated cooling systems to ensure rapid production cycles. Compatible with materials including PVC, PET, and PETG, it is an essential tool for creating high-quality slide-card packaging across various manufacturing sectors.

Category: Packaging Machine

Sample Display

Zhenjia Machinery provides sample proofing service, and offers complete production process guidance and customized production solutions. If you need to check processed samples and product details, please contact us for physical samples or high-definition sample pictures to intuitively experience the processing accuracy and product effect of our machine.

Eyelash Curler - HF Welder — Eyelash Curler – HF Welder

Our Certificate

Mold Supporting Service

This machine can be equipped with various specifications of molds, suitable for processing products of different sizes and types. All molds are made of high-quality wear-resistant materials. We can provide customized molds according to customer product specifications, and offer professional mold maintenance guidance to extend mold service life and ensure continuous production.

Double-Sided Blister Packaging and High-Frequency Molds

Packaging & Delivery

PVC Blister Folding Machine

The PVC Blister Folding Machine is a specialized industrial equipment engineered for the precise folding of blister forming products. Specifically designed for three-side folding applications, this machine is the primary choice for manufacturers producing blister covers and plastic hard sheet products that require a slide-card configuration. By automating the folding process, this machine ensures consistency, speed, and high-quality finishes for retail packaging.

Technical Specifications

The following parameters represent the standard configuration for the PVC Blister Folding Machine. For custom requirements, please contact our technical department.

Parameter	Specification
Machine Type	Three-Side Blister Folding Machine
Automation Level	High Degree of Automation
Heating System	Three-side separate heating plates
Temperature Control	Independent adjustment for each side
Safety Protection	Photoelectric / Infrared electric eye
Cooling System	Integrated cooling device
Compatible Materials	PVC, PU, TPU, PE, PET, PETG, APET
Molding Size	Adjustable as required
Power Output	Not specified (Configured per product)
Manufacturer	Foshan Zhenjia Machinery Co., Ltd.

Key Features and Industrial Advantages

1. Advanced Automation and Efficiency

The PVC Blister Folding Machine is designed to minimize manual labor while maximizing throughput. Its high degree of automation allows for rapid preparation for production, making it suitable for both high-volume manufacturing and specialized short-run batches. The streamlined operation ensures that the machine is time-saving and labor-saving, providing a significant return on investment for packaging facilities.

2. Independent Temperature Regulation

One of the standout features of this equipment is the three-side heating plate system. Each plate adopts a separate temperature control adjustment. This allows operators to freely adjust the heating temperature of each side independently. This precision is critical when working with sensitive materials like PETG or APET, where uneven heating can lead to warping or structural failure of the blister edge.

3. Integrated Cooling Device

To maintain the structural integrity of the fold, the machine is equipped with a dedicated cooling device. Once the plastic sheet is heated and folded, the cooling system rapidly sets the material. This ensures that the finished product is quickly cooled, preventing the fold from relaxing and allowing for immediate handling and packaging of the finished components.

4. Versatile Material Compatibility

This machine is engineered to handle a wide range of thermoplastic materials commonly used in the packaging industry. Whether you are working with standard PVC or more specialized materials like TPU or PET, the machine provides the necessary thermal control to achieve a clean, professional fold. Supported materials include:

PVC (Polyvinyl Chloride)
PU (Polyurethane)
TPU (Thermoplastic Polyurethane)
PE (Polyethylene)
PET (Polyethylene Terephthalate)
PETG (Polyethylene Terephthalate Glycol)
APET (Amorphous Polyethylene Terephthalate)

Safety and Operational Design

Safety is a paramount consideration in the design of Zhenjia Machinery. The PVC Blister Folding Machine incorporates an infrared electric eye safety design. This photoelectric safety protection function monitors the operation area and can halt the machine if an obstruction is detected, significantly reducing the risk of workplace injuries. Furthermore, the machine is built for durability, featuring a robust construction suitable for long-term industrial use in demanding environments.

Customization and Mold Services

Recognizing that blister packaging comes in various shapes and sizes, the molding size of this machine can be adjusted as required. Foshan Zhenjia Machinery Co., Ltd. provides comprehensive customization services. We utilize high-precision CNC processing machines to produce high-frequency molds, ultrasonic molds, and blister bakelite molds to meet the specific dimensions of your product samples.

About Zhenjia Machine

Foshan Zhenjia Machinery Co., Ltd. has specialized in the development and manufacturing of PVC Blister Folding Machines and automatic equipment technology for over 19 years. As a leading manufacturer, we integrate research and development, production, sales, and after-sales service. Our expertise extends to high-frequency welding and ultrasonic technology, ensuring that our customers receive superior equipment and technical support.

Packaging and Logistics

To ensure that your equipment arrives in perfect condition, we employ rigorous packaging standards. The machine is safely secured in a reinforced wooden case for transportation. This protection is designed to withstand the rigors of international shipping, ensuring that the high-precision components and photoelectric sensors remain calibrated and undamaged upon arrival.

Safety Warning: Operators must be trained in the use of infrared safety systems and temperature control settings. Ensure the cooling device is active during high-speed production to prevent thermal accumulation. Always disconnect power before performing maintenance on heating plates.

Contact for Technical Support

If you have questions regarding the configuration of this machine for your specific product requirements, our technical team is available to assist. We can configure the machine style and power based on your production samples.
