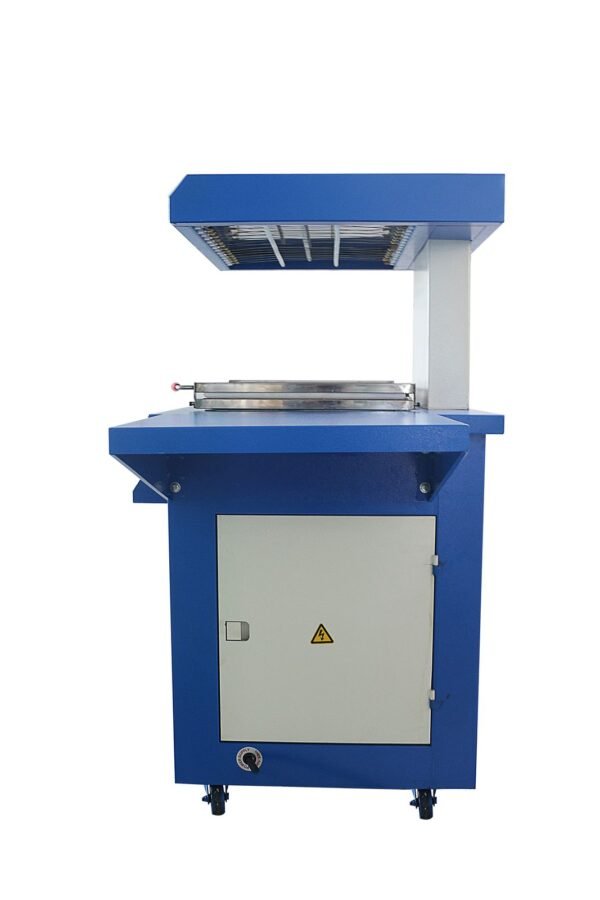

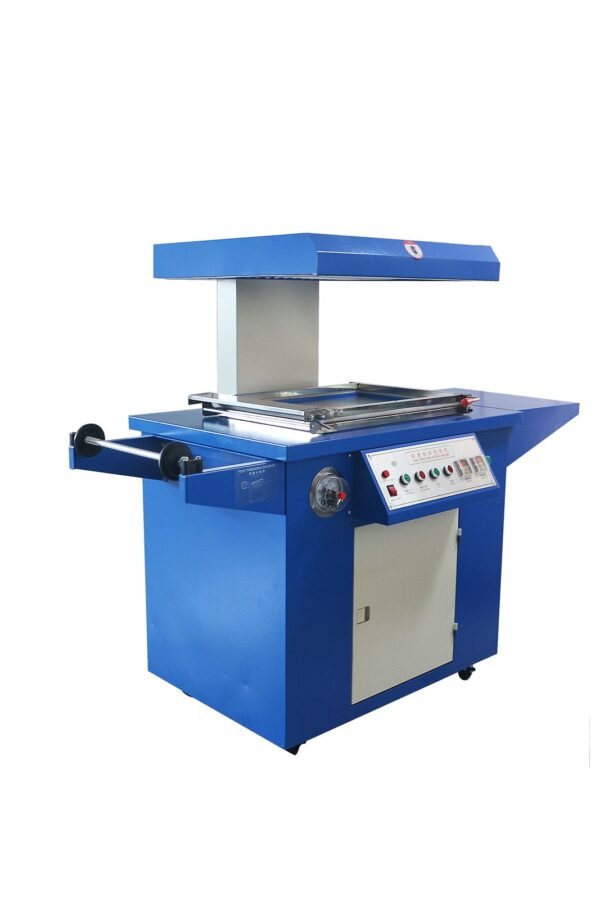

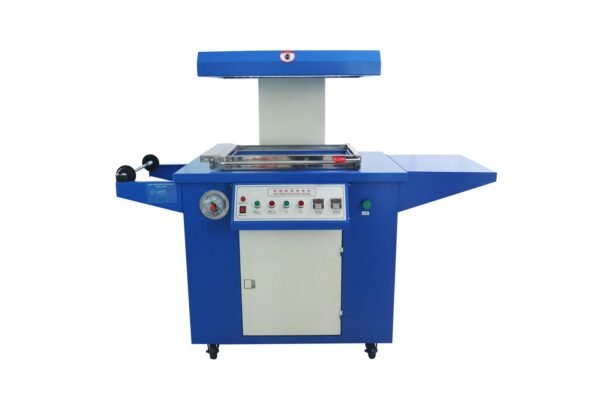

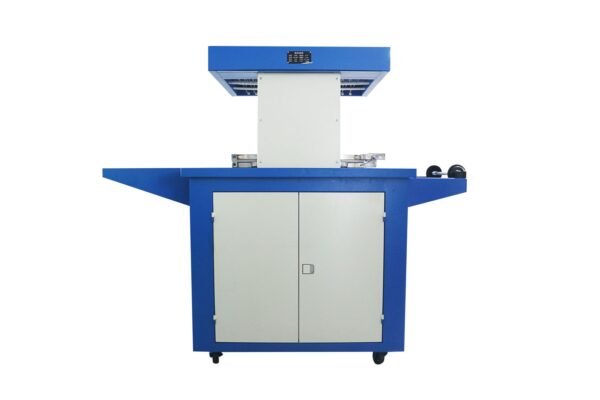

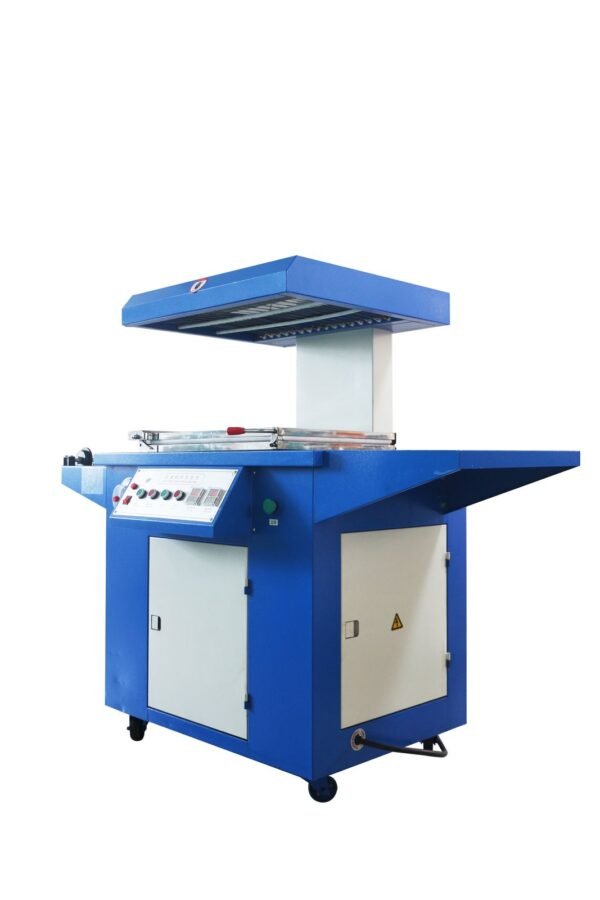

ZJ-5439 Skin Packaging Machine
The ZJ-5439 Skin Packaging Machine is a high-performance industrial solution engineered for direct vacuum bonding. Utilizing a 17kW pneumatic drive system, this machine eliminates the need for specialized tooling, making it an ideal choice for high-efficiency packaging across various product geometries. Designed for 380V power environments, the ZJ-5439 is particularly suited for manufacturers in Malaysia, Indonesia, and Vietnam seeking reliable, mold-free skin packaging technology to enhance product presentation and protection.
Sample Display
Zhenjia Machinery provides sample proofing service, and offers complete production process guidance and customized production solutions. If you need to check processed samples and product details, please contact us for physical samples or high-definition sample pictures to intuitively experience the processing accuracy and product effect of our machine.
Our Certificate
Mold Supporting Service
This machine can be equipped with various specifications of molds, suitable for processing products of different sizes and types. All molds are made of high-quality wear-resistant materials. We can provide customized molds according to customer product specifications, and offer professional mold maintenance guidance to extend mold service life and ensure continuous production.
Packaging & Delivery
ZJ-5439 Industrial Vacuum Skin Packaging Machine
The ZJ-5439 Skin Packaging Machine represents a specialized industrial solution for manufacturers requiring high-clarity, secure, and efficient product containment. Manufactured by Zhenjia Machine, a leader in industrial bonding and welding equipment, the ZJ-5439 is designed to streamline the packaging process through direct vacuum bonding technology. This model is specifically engineered to handle heavy-duty industrial workloads, featuring a robust 17 kW power rating and a pneumatic drive system that ensures consistent pressure and vacuum cycles.
High-Efficiency Vacuum Bonding Technology
One of the primary advantages of the ZJ-5439 is its ability to perform direct vacuum bonding. Unlike traditional packaging methods that may require complex setups, this machine draws the skin film tightly over the product and the backing card simultaneously. This process creates a second-skin effect that not only protects the item from oxidation and moisture but also provides an aesthetically pleasing retail presentation. The efficiency of the ZJ-5439 is further enhanced by its mold-free operation, allowing manufacturers to switch between different product shapes and sizes without the downtime associated with changing specialized tooling.
Technical Specifications and Electrical Configuration
The ZJ-5439 is built for the rigors of a modern production line. Below are the recorded technical specifications for this model. Please note that certain values such as physical dimensions and specific output rates are dependent on the material samples and factory layout.
| Specification | Recorded Value |
|---|---|
| Model Number | ZJ-5439 |
| Power Rating | 17 kW |
| Drive Type | Pneumatic (气压) |
| Power Supply | 380 V |
| Primary Features | Direct vacuum bonding, No special molds required, High-efficiency packaging |
| Output Capacity | Not specified; dependent on material and sample validation |

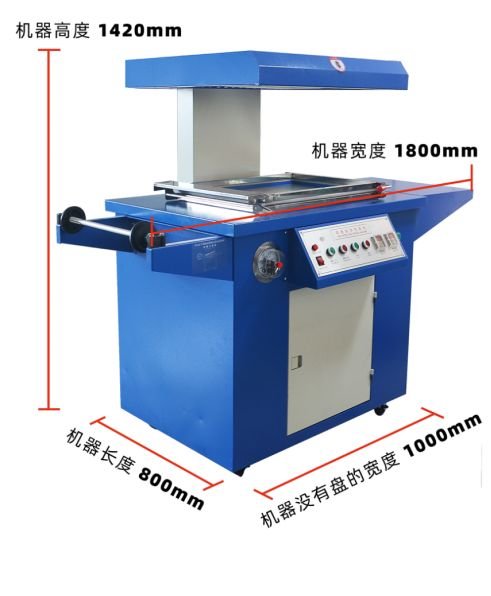

| Machine Dimensions | Not specified; confirm with layout drawing |
| Certification Scope | Not specified; confirm for specific destination country |
Core Features and Operational Advantages
The ZJ-5439 distinguishes itself through three core operational pillars: direct vacuum bonding, mold-free versatility, and high-efficiency output. By utilizing a pneumatic drive (气压), the machine offers a reliable and repeatable mechanical action that is easier to maintain than purely hydraulic systems in many packaging environments.
Direct Vacuum Bonding
The direct vacuum process ensures that the film adheres perfectly to the contours of the product. This is critical for industrial components, hardware, and consumer goods where movement within the package could lead to damage or a poor consumer experience. The 17 kW power supply provides the necessary thermal energy to quickly soften the skin film, ensuring a fast cycle time.
Elimination of Specialized Tooling
The ZJ-5439 is designed to operate without the need for product-specific molds. This feature is a significant cost-saver for B2B operations that handle a wide variety of SKUs. By removing the requirement for dedicated tooling, the ZJ-5439 reduces the initial investment for new product launches and simplifies the inventory management of machine accessories.
Regional Installation Guidelines: Malaysia, Indonesia, and Vietnam
Zhenjia Machine provides specific guidance for the deployment of the ZJ-5439 in Southeast Asian markets. Given the 380 V power requirement, it is essential to conduct a thorough site audit before the equipment arrives. For buyers in Malaysia, Indonesia, and Vietnam, the following factors must be confirmed to ensure a successful installation:
- Voltage and Frequency: While the machine is recorded at 380 V, local grid stability varies. Confirm if a voltage stabilizer is required to protect the 17 kW electrical system.
- Environmental Controls: High humidity and heat can affect the performance of pneumatic components and electrical cabinets. Proper ventilation and moisture control must be planned around the machine’s installation site.
- Certification Compliance: Ensure the machine meets local standards such as SIRIM (Malaysia), SNI (Indonesia), or QCVN/TCVN (Vietnam). Certification scope must be verified for the exact ZJ-5439 model before claiming compliance.
- Factory Infrastructure: Verify the factory earth/grounding and the availability of a stable air supply to support the pneumatic drive system.
Configuration Check Before Quotation
To provide an accurate quotation and ensure the ZJ-5439 meets your production requirements, Zhenjia Machine requires a comprehensive configuration review. This review covers the following critical data points:
- Detailed material specifications and sample drawings of the products to be packaged.
- Confirmation of the working envelope and required tooling dimensions.
- Target output goals and intended shift patterns (e.g., 8-hour vs. 24-hour operation).
- Site-specific electrical data, including frequency (Hz) and plug standards.
- Destination-specific certification requirements.
Safety Protocols and Routine Maintenance
Operating high-power industrial machinery requires strict adherence to safety standards. The ZJ-5439 involves both thermal and pneumatic hazards that must be managed through proper training and maintenance.
CRITICAL SAFETY NOTICE: Before performing any maintenance, changing tooling, or clearing jams, operators must isolate the main power supply, perform a lockout/tagout (LOTO) procedure, and bleed all residual pneumatic pressure. Access to the electrical cabinet and sealing head adjustments must be restricted to trained technical personnel. Always refer to the machine manual for specific pressure values and safety clearances.
To maintain the longevity of the ZJ-5439, the following routine maintenance tasks are recommended:
- Daily verification of emergency stop buttons and safety interlocks.
- Regular inspection of pneumatic lines, fittings, and seals for leaks or wear.
- Cleaning of the sealing head, electrodes, and platen to prevent material buildup.
- Adherence to the manufacturer’s lubrication schedule for all moving pneumatic parts.
Selection FAQ
What are the primary applications for the ZJ-5439?
The ZJ-5439 is primarily used for vacuum skin packaging. It is highly effective for hardware, electronics, and consumer products where visibility and protection are paramount. Material compatibility must be confirmed with actual samples.
Can the ZJ-5439 handle different voltages?
The standard recorded supply is 380 V. For facilities with different voltage standards, a transformer or custom configuration may be necessary; this must be confirmed during the pre-quotation check.
Does this machine require custom molds for every product?
No, one of the key features of the ZJ-5439 is that it does not require specialized molds for standard skin packaging, allowing for greater flexibility in product variety.
