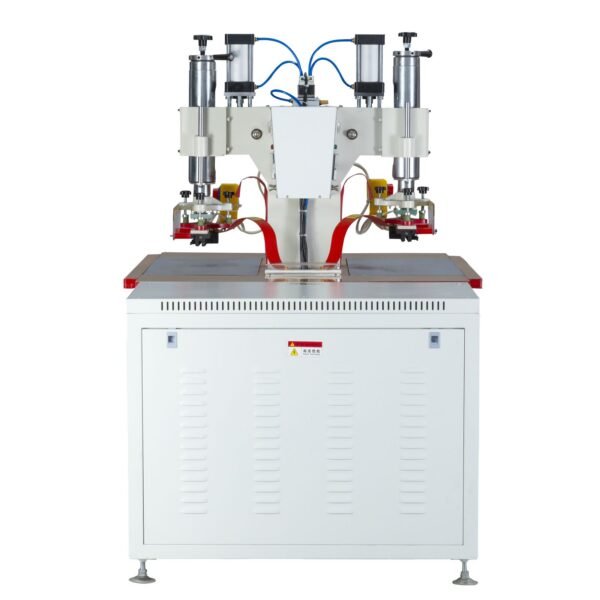

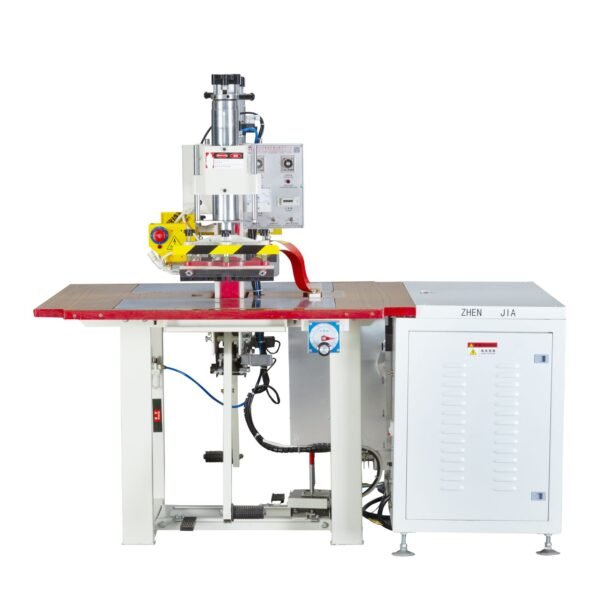

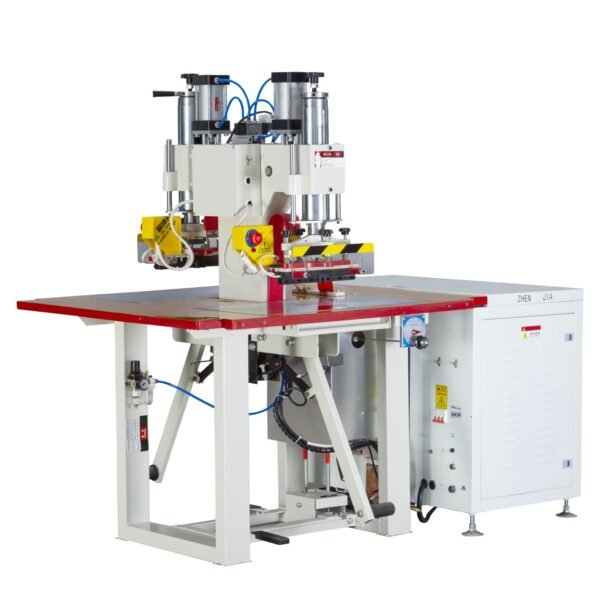

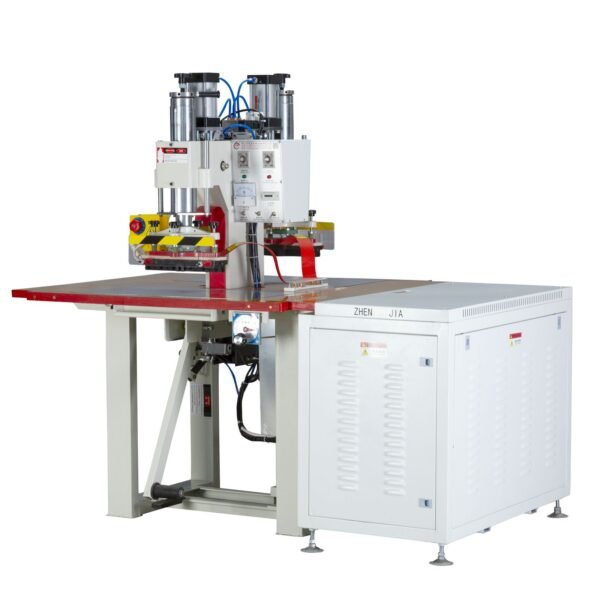

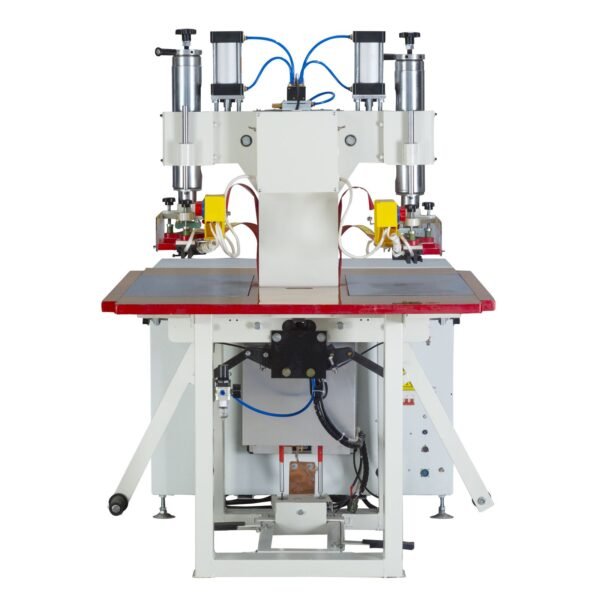

ZJ-5K-8K-10K-TR Double-Head Pneumatic HF Welding Machine
The ZJ-5K-8K-10K-TR Double-Head Pneumatic HF Welding Machine is a 5 kW-10 kW pneumatic machine with a 380 V supply.
Sample Display
Zhenjia Machinery provides sample proofing service, and offers complete production process guidance and customized production solutions. If you need to check processed samples and product details, please contact us for physical samples or high-definition sample pictures to intuitively experience the processing accuracy and product effect of our machine.
Our Certificate
Mold Supporting Service
This machine can be equipped with various specifications of molds, suitable for processing products of different sizes and types. All molds are made of high-quality wear-resistant materials. We can provide customized molds according to customer product specifications, and offer professional mold maintenance guidance to extend mold service life and ensure continuous production.
Packaging & Delivery
The ZJ-5K-8K-10K-TR Double-Head Pneumatic HF Welding Machine is a 5 kW-10 kW pneumatic machine with a 380 V supply. It is recorded for a material set that is not fixed in the current record; confirm it with the actual sample. For buyers in Malaysia, Indonesia and Vietnam, confirm tooling, material samples and site voltage before quotation.
ZJ-5K-8K-10K-TR Double-Head Pneumatic HF Welding Machine: Specifications & Electrical Configuration
| Specification | Recorded value |
|---|---|
| Power | 5 kW-10 kW |
| Frequency | 27.12 MHz |
| Drive Type | Pneumatic |
| Power Supply | 380 V |
| Output / dimensions / certification | Not specified; confirm with sample, layout and certification scope |
Material & Application Compatibility
The material set is not fixed in the current record; confirm it with the actual sample. Compatibility should be confirmed with the actual shell, card or film, and with the production tooling.
Configuration Check Before Quotation
A useful configuration check covers:
- Material and sample drawing;
- Tooling and working envelope;
- Target output and shift pattern;
- Site voltage, frequency and air or hydraulic supply;
- Destination country and certification scope.
Installation Notes for Malaysia, Indonesia and Vietnam
The recorded supply is 380 V. Confirm frequency, plug standard and actual site voltage before shipment.
- Voltage stability: confirm whether a stabilizer is required.
- Humidity and heat: plan ventilation and moisture control around the cabinet.
- Grounding: verify the factory earth before commissioning.
- Air or hydraulic supply: confirm pressure and consumption with the installation data.
- Certification: check SIRIM, SNI, QCVN/TCVN or CE scope for this exact model; do not claim without a certificate.
Safety & Routine Maintenance
⚠️ CRITICAL SAFETY NOTICE: Before changing tooling, clearing a jam or opening any guard, isolate the main power, lock it out and bleed residual pneumatic or hydraulic pressure. Adjustments to the sealing head or electrical cabinet should be made by trained personnel; other operators should not open the cabinet. Confirm the lockout procedure and pressure values in the machine manual.
- At each shift start, verify the emergency stop and guard interlocks.
- Inspect pneumatic or hydraulic lines and fittings for leaks.
- Keep the electrode, sealing head and platen clean.
- Follow the manufacturer schedule for lubrication, filter replacement and electrical inspection.
Selection FAQ
What is the double-head pneumatic hf welding machine used for?
The ZJ-5K-8K-10K-TR Double-Head Pneumatic HF Welding Machine is used for double-head pneumatic HF welding; confirm the material and tooling with a sample.
What power and voltage does the ZJ-5K-8K-10K-TR use?
5 kW-10 kW and 380 V are recorded; confirm frequency and site voltage.
What is the output?
Output depends on material, tooling and sample validation; it is not fixed by the model code.
