Dual Head High Frequency Welding Machine for Leather Embossing — ZJ-8K-TR
Sample Display
Zhenjia Machinery provides sample proofing service, and offers complete production process guidance and customized production solutions. If you need to check processed samples and product details, please contact us for physical samples or high-definition sample pictures to intuitively experience the processing accuracy and product effect of our machine.
Our Certificate
Mold Supporting Service
This machine can be equipped with various specifications of molds, suitable for processing products of different sizes and types. All molds are made of high-quality wear-resistant materials. We can provide customized molds according to customer product specifications, and offer professional mold maintenance guidance to extend mold service life and ensure continuous production.
Packaging & Delivery
Dual Head High Frequency Welding Machine for Leather Embossing — ZJ-8K-TR
Zhenjia Machinery · Foshan, China · CE & ISO 9001 Certified HF Welding Specialist
1. Product Introduction
The ZJ-8K-TR Dual Head Foot-Pedal High Frequency (RF) Welding Machine is a professional-grade heat-sealing solution engineered by Zhenjia Machinery Equipment Co., Ltd., a dedicated high frequency welding machine manufacturer headquartered in Foshan, Guangdong, China.
Designed specifically for leather embossing, logo pressing, and PVC sealing & laminating, this machine combines a robust dual-head structure with an intelligent anti-spark protection system. The result is a stable, efficient, and operator-friendly production tool that protects your expensive HF molds while delivering clean, scorch-free welds.
Every ZJ-8K-TR unit is built to international standards — it has passed the EU CE export quality inspection and is manufactured under an ISO 9001 certified quality management system. To help you validate production before ordering, Zhenjia provides free sample making for your prototypes, full disclosure of the production process, and customized production solutions.
2. What Is a Dual Head HF Machine & How This Model Works
A dual head high frequency machine uses two independently operating press heads mounted on a shared frame. In the ZJ-8K-TR, the two heads work alternately — while one head is cooling/welding, the operator loads or unloads the other. This dramatically improves throughput compared with a single-head machine.
Operation flow (foot-pedal control):
- The machine has two working panels, one on each side of the head.
- The operator uses the right foot to position the material (location pedal).
- The left foot triggers the high frequency weld (start pedal).
- Welding time is automatically controlled by a preset timer.
- Left and right heads operate in an interlocked, alternating cycle — safe and continuous.
This hands-on, foot-controlled design keeps both of the operator’s hands free for fast loading/unloading, making it ideal for small-to-medium batch production with frequent style changes.
3. Core Features & Benefits
| # | Feature | Benefit to Your Production |
|---|---|---|
| 1 | High-Q electron oscillation tube | Stable, reliable RF output; consistent weld quality batch after batch |
| 2 | Dual guide-rod structure | High positioning precision; smooth, flexible head movement |
| 3 | Preset time + mechanical interlock | Two heads alternate safely; no overlap, no collision risk |
| 4 | Lever-toggle transmission press | Even pressure with minimal effort; reduces operator fatigue |
| 5 | Imported premium electrical components | Long service life, low failure rate, easy maintenance |
| 6 | Pneumatic direct-press system | Simple operation, fast fusing/cutting, clean results |
| 7 | Anti-spark protection device | Protects molds & products from high-frequency arcing damage |
| 8 | Instant penetration welding mode | Penetrates and fuses in a flash — no scorching on workpiece |
4. Welding Mode & Material Compatibility
The ZJ-8K-TR uses high frequency instantaneous penetration heat-sealing. The RF field rapidly energizes polar molecules inside PVC/PU/leather coatings, generating internal heat that fuses the material from the inside out — so the surface is not burned or discolored.
Typical applicable materials:
- Genuine & synthetic leather (embossing, logo pressing)
- PVC soft sheet / film
- Composite laminates requiring sealing or bonding
Typical applications:
- Leather goods embossing (bags, wallets, belts, footwear)
- PVC logo welding & trademark pressing
- PVC sealing and lamination
- Soft inflatable & promotional products

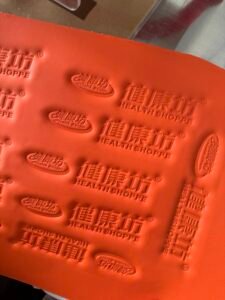

5. Sample

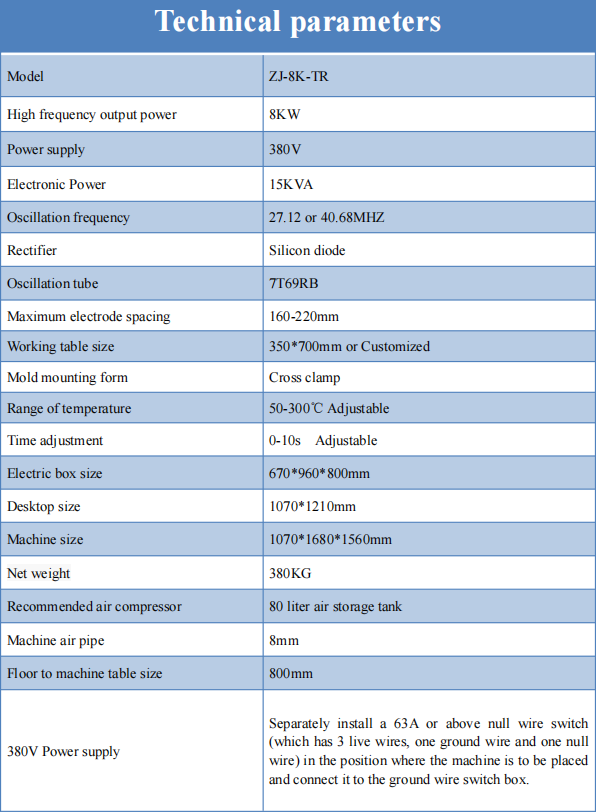

6. MACHINE Parameters
7. Why Choose Zhenjia Machinery
- Factory-direct from Foshan — competitive price, fast lead time.
- CE & ISO 9001 certified — export-ready quality you can trust.
- Anti-spark protection extends mold life and reduces scrap.
- Full production support — we teach the whole process and design your production plan.
- Stable & durable — imported components, high-Q tube, precision structure.
8. Frequently Asked Questions
Q: Will the high frequency damage my molds or products?
A: No. The built-in anti-spark protection device instantly suppresses arcing, protecting both the HF mold and the workpiece.
Q: Is it difficult to operate?
A: Not at all. The pneumatic system and foot-pedal control are simple — one operator can load, position, weld, and unload efficiently.
Q: What certifications do you have?
A: Our machines pass EU CE export inspection and are built under ISO 9001 quality management.
Q: Do you offer other power ratings?
A: Yes. The dual-head TR series includes ZJ-5K-TR, ZJ-8K-TR, and ZJ-10K-TR to match different production needs.
9. Request a Quote / Free Sample
Ready to test the ZJ-8K-TR on your own leather or PVC products? Contact Zhenjia Machinery for a free sample, technical datasheet, and production solution.
