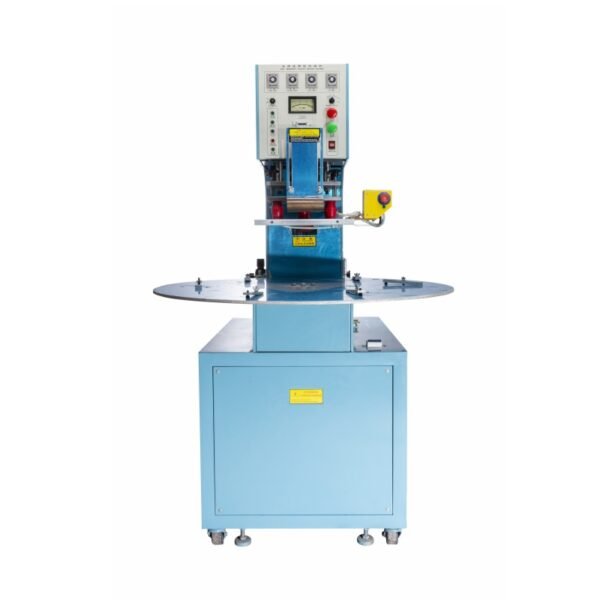

Rotary High Frequency Welding Machine

5KW High Frequency Welder for Blister Packaging

The 5KW Round Table High Frequency Welding Machine by Zhenjia Machine is a precision-engineered solution for high-volume blister packaging. Designed for materials like PVC, PET, and TPU, it features an advanced US double-pipe anti-spark protection system to safeguard molds and workpieces. With 19 years of manufacturing expertise, Zhenjia provides a CE-certified, ISO9001-compliant welder equipped with high-quality Austrian filaments for stable energy output and extended service life in demanding industrial environments.


Categories: , , ,

Sample Display

Zhenjia Machinery provides sample proofing service, and offers complete production process guidance and customized production solutions. If you need to check processed samples and product details, please contact us for physical samples or high-definition sample pictures to intuitively experience the processing accuracy and product effect of our machine.

Our Certificate

Mold Supporting Service

This machine can be equipped with various specifications of molds, suitable for processing products of different sizes and types. All molds are made of high-quality wear-resistant materials. We can provide customized molds according to customer product specifications, and offer professional mold maintenance guidance to extend mold service life and ensure continuous production.

Packaging & Delivery



5KW High Frequency Welder for Blister Packaging

The 5KW Round Table High Frequency Welding Machine is a specialized industrial solution designed for precision sealing and packaging applications. Engineered by Foshan Zhenjia Machinery Co., Ltd., this machine leverages 19 years of research and development to deliver consistent, high-quality welds for a variety of thermoplastic materials. Its rotary table design is specifically optimized for high-efficiency production lines, allowing for simultaneous loading, welding, and unloading processes.

Industrial Applications and Material Compatibility

This high-frequency welding system is a versatile asset for manufacturers across multiple sectors. It is primarily utilized for blister packaging, where a secure, airtight, and aesthetically clean seal is required. Common applications include:

  • Blister Packaging: PVC double-sided blister sealing for retail products.
  • Hardware and Tools: Secure packaging for heavy or sharp industrial components.
  • Consumer Goods: Packaging for toys, milk bottles, and bathroom accessories.
  • Medical and Personal Care: Hygienic sealing for sensitive items.

The machine is compatible with a wide range of industrial plastics, ensuring flexibility for diverse production requirements. Supported materials include:

  • Polyvinyl Chloride (PVC)
  • Polyurethane (PU)
  • Thermoplastic Polyurethane (TPU)
  • Polyethylene (PE)
  • Polyethylene Terephthalate (PET)
  • PETG and APET

Advanced Anti-Spark Protection and Safety

One of the critical features of the 5KW Round Table High Frequency Welding Machine is the integrated United States Double-pipe anti-spark protection device. High-frequency welding involves intense electromagnetic fields that can occasionally cause arcing or sparking. This advanced protection system is designed to detect these events instantaneously, cutting power to the circuit to prevent damage to the high-frequency molds and the production workpieces. This significantly reduces the chance of machine ‘lightening’ and extends the operational lifespan of your tooling investments.

High-Performance Electronic Oscillation System

The core of the machine’s welding capability lies in its electronic oscillation tube. Zhenjia Machine utilizes high-quality filaments imported from Austria to ensure superior performance. The oscillation system provides three primary advantages:

1. Stable Energy Output

The Austrian-sourced filaments ensure that the machine provides a consistent energy flow throughout the welding cycle. This stability is crucial for maintaining weld strength and uniformity across large production batches.

2. Extended Service Life

By using premium materials in the oscillation barrel, the machine is better equipped to resist the thermal and electrical stresses of continuous industrial use. This reduces the frequency of component replacement and minimizes unplanned downtime.

3. Enhanced Working Efficiency

The efficient conduction of energy within the oscillation tube allows the machine to reach optimal welding temperatures faster and maintain them more effectively, resulting in shorter cycle times and higher throughput.

Technical Specifications

The following table outlines the primary technical parameters for the 5KW Round Table High Frequency Welding Machine. For specific dimensions or custom requirements, please consult our technical department.

Parameter Specification
Power Output 5KW
Machine Configuration Round Table (Rotary)
Anti-Spark System US Double-pipe Protection
Oscillation Tube Filament Imported from Austria
Compatible Materials PVC, PU, TPU, PE, PET, PETG, APET
Certification EU CE, ISO9001
Manufacturing Experience 19 Years
Mold Processing CNC Customization Available
Packaging Type Wooden Case
Voltage Not specified
Air Pressure Requirement Not specified

Custom Mold Manufacturing and CNC Services

Foshan Zhenjia Machinery Co., Ltd. operates a dedicated facility equipped with high-precision CNC processing machines. We provide comprehensive mold customization services to ensure that the high-frequency molds, ultrasonic molds, or blister bakelite molds are perfectly matched to your specific product geometry and machine type. This vertical integration ensures that the tooling and the machine work in perfect harmony for the best possible sealing results.

Quality Assurance and Global Standards

Quality is at the forefront of our manufacturing process. Our 5KW High Frequency Welders have successfully passed the EU CE export quality inspection and the ISO9001 quality management system test. Furthermore, our commitment to innovation is reflected in the numerous patents held by the company for our proprietary high-frequency technology and automatic equipment designs.

Packaging and Logistics

To ensure that your equipment arrives in perfect working condition, every machine is securely packed in a robust wooden case. This protective packaging is designed to withstand the rigors of international transportation, protecting the sensitive electronic components and the mechanical structure from impact and environmental factors.

Safety Warning

OPERATIONAL SAFETY: High-frequency welding equipment generates powerful electromagnetic fields. Only trained personnel should operate this machinery. Ensure all safety guards are in place and the anti-spark system is functional before beginning production. Maintain a safe distance from the oscillation barrel during active welding cycles.

Contact Zhenjia Machine for a Quote

Are you looking to optimize your blister packaging line with a reliable 5KW High Frequency Welder? With nearly two decades of expertise, Zhenjia Machine provides the technical support and high-performance equipment your facility needs. Contact our sales team today to discuss your material requirements and custom mold specifications.

5KW High Frequency Welder: selection and next steps

When comparing a 5KW High Frequency Welder, confirm the material, tooling, cycle time and site voltage before quotation. A 5KW High Frequency Welder should be matched to the actual product, output target and operator model, not only to the machine size.
