How to Choose the Right HF Welding Die: Brass vs. Aluminum, Edge Design, and Buffer Layer for Strong, Consistent Seals

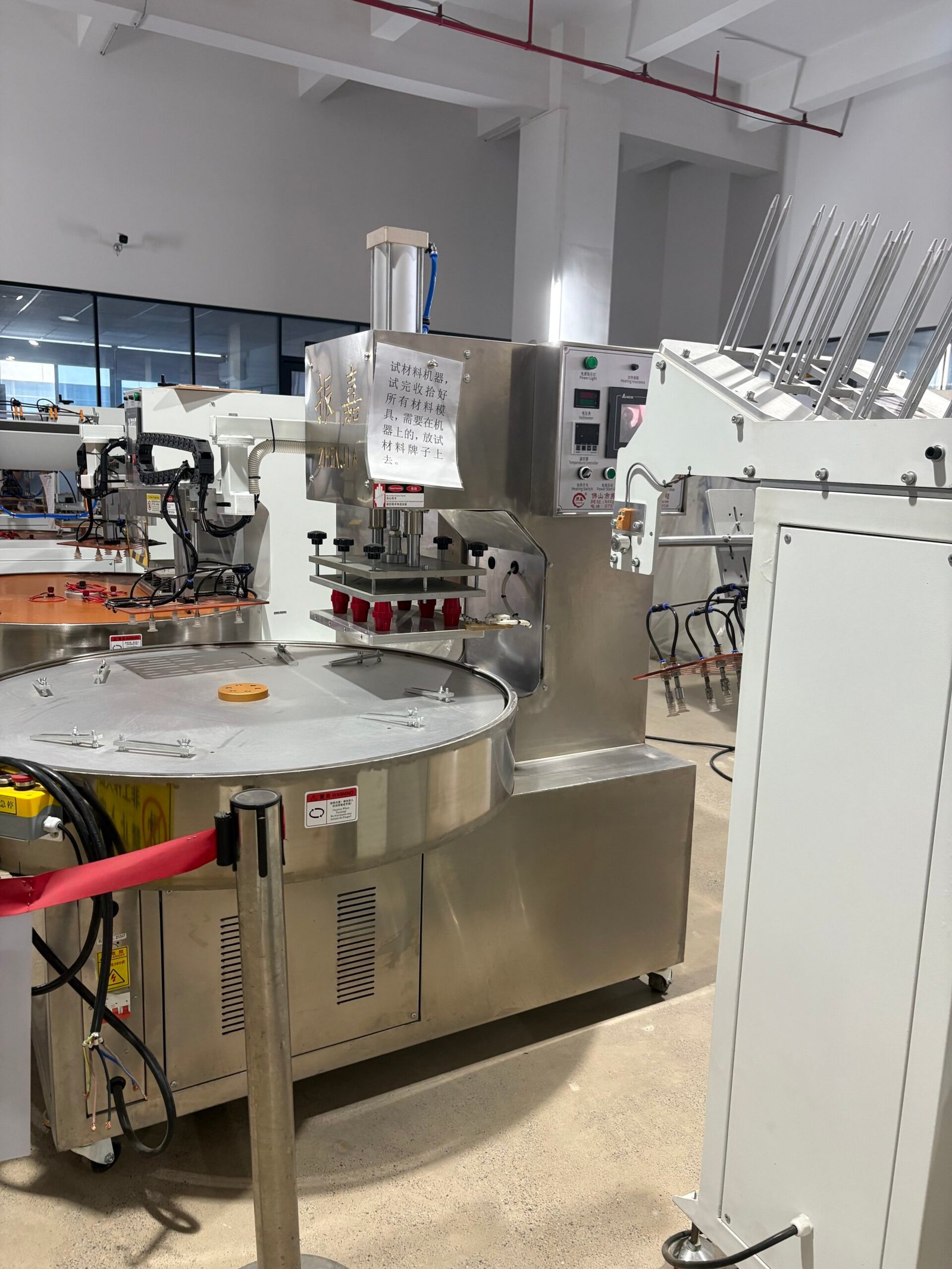

A high frequency welding machine converts electrical energy into heat through the die. The die is the final physical interface between the machine and your product. Every watt of RF power flows through it. And every gram of pressure presses through it. And every detail of the weld seam traces back to the die’s material, shape, and setup.

Poor HF welding die selection wastes energy, shortens tool life, and produces inconsistent seals. Smart selection does the opposite. It lowers power consumption, extends die life to millions of cycles, and locks in seal quality shift after shift.

This guide walks you through the three most important decisions in high frequency welding electrode design. You will learn why brass electrodes typically save 25% power compared to aluminum. You will see how edge shape directly determines weld width and peel strength. And you will understand exactly what the buffer layer does and why it matters as much as the metal it sits under.

The Material Decision: Why Brass Outperforms Aluminum in Most HF Welding Dies

The first choice you make in RF welding mold material brass vs aluminum sets the course for your operating costs. Both metals conduct electricity. Both are machinable. The differences show up in your electricity bill, your die inventory, and your scrap rate.

Electrical Conductivity and the 25% Power Saving

Brass is an alloy of copper and zinc. It inherits copper’s outstanding electrical conductivity. Aluminum conducts electricity, but only about 60% as well as the brass grades commonly used for HF welding tooling.

This conductivity gap translates directly into power consumption. An aluminum die resists RF current flow more than a brass die. It converts a larger portion of the applied energy into waste heat inside the die body itself. A brass die channels more of that same energy into the thermoplastic material where it actually performs useful work.

Real production data confirms the difference. When a manufacturer switches an existing die design from aluminum to brass without changing any other parameter, the required generator power setting drops by 20% to 25% to achieve an identical weld. That is not a theoretical saving. It is lower kilowatt-hours on every single cycle. Over a year of multi-shift operation, the electricity cost reduction alone often equals the purchase price of the brass die.

This is the most compelling argument in HF welding die selection for high-volume production. Brass dies cost more to make, but they start paying back that premium from the very first cycle.

Thermal Behavior During Continuous Runs

Brass conducts heat more efficiently than aluminum. It pulls heat out of the weld zone and into the die body faster. On a high-cycle-rate machine, this rapid heat extraction is an advantage. It prevents the sealing edge from overheating, which in turn prevents material scorching and extends the safe operating window.

Aluminum resists this heat flow more. The die face runs hotter, especially during extended production runs without cooling pauses. For heat-sensitive materials like thin PVC film or EVA, that extra heat can shrink the process window and increase the risk of burning.

There are cases where aluminum’s thermal behavior actually helps. When welding very thin materials at low power, the die needs to retain some heat to initiate a reliable melt. Aluminum’s slower heat transfer can make the process slightly more forgiving for delicate, low-energy applications. But these cases are exceptions. For the vast majority of production, brass’s thermal control delivers more consistent results.

Wear Resistance and Die Longevity

Aluminum is a relatively soft metal. Every press cycle applies tons of force through the sealing edge. Over thousands of cycles, that edge gradually deforms. It rounds over. The weld width increases and the pressure per square millimeter decreases. The seal becomes progressively weaker, and eventually the die must be re-ground or replaced.

Brass resists this deformation far better. A brass die maintains its sharp sealing edge and its exact dimensions through hundreds of thousands of cycles. Some brass dies run over a million cycles before requiring rework. This dimensional stability means you produce the same weld quality on cycle 100,000 as on cycle one.

The economic impact extends beyond the die itself. Less frequent die changes mean less production downtime. More consistent weld quality means lower scrap rates and fewer quality escapes. When you calculate the true cost of a die, you must include the production it enables, not just the invoice price.

When Aluminum Still Makes Sense

Aluminum remains the right choice in specific situations. Prototype dies and very short pre-production runs benefit from aluminum’s lower cost and faster machining time. You can iterate a design in aluminum quickly and inexpensively, then commission the production die in brass once the design is locked.

Very large dies, where a brass blank would be prohibitively expensive, sometimes use aluminum with hardened steel inserts at the sealing edges. This hybrid approach puts the high-performance material exactly where it is needed and uses lower-cost material for the bulk of the die body.

Edge Shape: The Geometry That Defines Weld Width and Strength

The profile you cut into the sealing face determines the shape, width, and performance of the finished weld. High frequency welding electrode design means selecting the profile that delivers the right balance of strength, appearance, and process efficiency for your specific product.

Flat Edge: Maximum Bond Area for Structural Seams

A flat edge presents a broad, parallel face to the material. Weld widths range from about 3mm up to 10mm or more. The resulting seam is wide and exceptionally strong. Peel forces distribute across a large bonded area, making the joint highly resistant to separation.

Flat edge profiles suit products that bear structural loads. Heavy-duty tarpaulins, inflatable boat tube seams, and load-bearing straps all use flat edge seals. The trade-off is power. A wider flat face demands more RF energy because it heats a larger volume of material. The generator and the die material must both be sized to deliver that power efficiently.

Tear-Seal Edge: Weld and Trim in a Single Press Stroke

A tear-seal RF sealing die combines a narrow sealing face with an adjacent cutting blade. The blade stands 0.6mm to 1.2mm higher than the sealing face. As the press closes, the blade trims the part from the surrounding scrap while the flat face simultaneously welds the layers together.

This design eliminates a separate trimming operation. It guarantees perfect alignment between the seal and the cut edge. The seal sits immediately adjacent to the part perimeter, maximizing the usable area. Tear-seal edges are standard in medical pouches, inflatable products, stationery, and any product that needs a sealed edge with no excess flash.

The typical weld width from a tear-seal edge is 1.5mm to 3mm. The cutting edge consumes some of the applied pressure, so the die design must ensure that the sealing face still receives adequate pressure to achieve full fusion.

Radius Edge: Eliminating Stress Risers at Corners

Sharp corners on a die create sharp corners on the weld. Under peel or burst loading, stress concentrates at those sharp corners. The seam begins to fail exactly at the corner, and the tear propagates from there.

A radius edge replaces sharp internal corners with smooth curves. Even a small radius of 1.5mm to 3mm distributes stress along the curve and dramatically reduces the tendency to initiate peeling. Products that experience pressure cycles, like inflatable mattresses and medical fluid bags, depend on radius edges for long-term seal integrity.

Contoured Edge: Welding on Curved Surfaces

Not all products are flat. Automotive door panels, sun visors, and contoured medical device housings require dies that match the three-dimensional shape of the part. Contoured dies have machined compound curves that maintain a uniform gap to the counter electrode across the entire sealing path.

Contouring adds complexity and cost. The die must be machined and verified on a coordinate measuring machine to ensure consistent clearance. But for products that cannot be welded flat, a properly contoured die is the only way to achieve a uniform seal.

The Buffer Material: A Simple Layer with Three Essential Jobs

Between the metal die and the press platen sits a buffer layer. It may look like a simple sheet of silicone or phenolic, but it performs three functions that are absolutely critical to HF welding tooling performance.

Job one : Equalizing Pressure Across the Entire Die Face

No press platen is perfectly flat at the micron scale. No fabricated die is perfectly parallel to the lower table across its full area. These tiny deviations concentrate pressure at the high points and starve the low points. A metal-on-metal press produces a weld that is strong in some spots and weak in others.

A resilient buffer material compresses slightly under load. This compression absorbs the dimensional variations and redistributes the applied tonnage evenly across the entire sealing face. The result is uniform pressure, uniform heating, and a uniform weld from end to end. Silicone rubber sheets in thicknesses from 0.5mm to 3mm are the most common buffer for this purpose.

Job two: Electrical Insulation and Arc Protection

The buffer material is electrically insulating. It provides a secondary layer of protection between the live RF electrode and the grounded machine frame. If the primary machine insulation ever breaks down, the buffer prevents a direct short circuit.

The buffer also suppresses arcing at die edges. The electric field intensifies at sharp corners. By extending slightly beyond the die edges, the buffer smooths the field gradient and reduces the likelihood of a spark initiating. This protection extends both die life and product quality.

Job three: Thermal Management Between Die and Press

The buffer acts as a thermal barrier. It slows the conduction of heat from the hot die into the press structure. This keeps the platens cooler, which reduces thermal expansion and helps maintain die alignment during long production runs. It also protects press components from heat degradation.

Some applications use different buffer materials above and below the material stack. A harder phenolic top buffer provides precise pressure transmission. A softer silicone bottom buffer conforms to slight material thickness variations. This combination optimizes both pressure uniformity and arc suppression.

Matching the Die to Your Machine and Product

Even the best die produces poor results if it exceeds the capacity of the machine. Before commissioning any RF sealing die, verify two things.

First, calculate the total sealing area. Multiply the total length of all sealing edges by the weld width. Compare this area against the generator’s rated output. A die that demands more power than the generator can supply will never produce a full-strength weld, regardless of how long you extend the cycle time.

Second, confirm the die body fits within the press opening with adequate clearance for material loading and part removal. If the die includes a tear-seal cutting edge, allow additional stroke for the cutting over-travel.

For multi-cavity dies, multiply the power and pressure demands by the number of cavities. A four-up die produces four parts per cycle but also demands four times the power and four times the clamping force. Your press tonnage and generator rating must both support the multi-cavity configuration.

Choose for the Long Run

HF welding die selection is not a one-time purchasing decision. It is a process investment that plays out over millions of cycles. The material you choose determines your power bill and your die change frequency. The edge shape you specify determines your seal strength and product appearance. The buffer you fit determines your pressure uniformity and arc protection.

For high-volume production, brass dies with an application-matched edge profile and a quality silicone buffer deliver the lowest total cost per sealed part. For prototypes and short runs, aluminum tooling gets you into production quickly at lower upfront cost. In every case, treat your dies as the precision components they are. Inspect them regularly. Clean them on schedule. Store them carefully. A well-maintained HF welding tooling inventory keeps your machines producing perfect seals year after year.
