Material Sticking to the Die After HF Welding: Why It Happens and How to Prevent It

Material sticking to the die is one of the most disruptive problems in HF welding production. The press opens, the operator reaches for the finished part, and the weld zone pulls upward with the electrode instead of releasing cleanly. The product tears. The die surface gets fouled with residue. The next cycle starts wrong before it begins.

HF welding material sticking to die is not random. It always has a specific cause — usually one of five. Most cases resolve with a straightforward fix that takes minutes. A few require a small tooling modification. None require new equipment.

This guide covers every cause of PVC, PU, and TPU sticking after high frequency welding, explains the mechanism behind each one, and gives specific fixes in order of ease.

Why Material Sticks: The Basic Mechanism

Understanding why sticking happens makes the fixes obvious rather than arbitrary.

What Keeps Material from Sticking Under Normal Conditions

During a correctly set HF welding cycle, the material at the bond interface heats to fusion temperature under pressure. The outer surface — the side in direct contact with the metal electrode — stays cooler because the metal conducts heat away rapidly. When the generator switches off and cooling begins, the outer surface solidifies first. By the time the press opens, the surface layer has cooled below its adhesion temperature and releases cleanly from the metal die.

Sticking occurs when this sequence breaks down. The outer surface is still above its adhesion temperature when the press opens. The partially molten or tacky surface grips the metal die face. If the adhesion force between the softened PVC and the metal exceeds the structural integrity of the weld zone, the part tears rather than releases.

The Two Things That Determine Release Temperature

Release quality depends on two variables: how hot the material surface gets during the cycle, and how much it cools before the press opens. Anything that raises the surface temperature — or shortens the cooling period — pushes the material toward sticking. Fixing sticking always means addressing one or both of these variables.

Cause 1: Power Too High

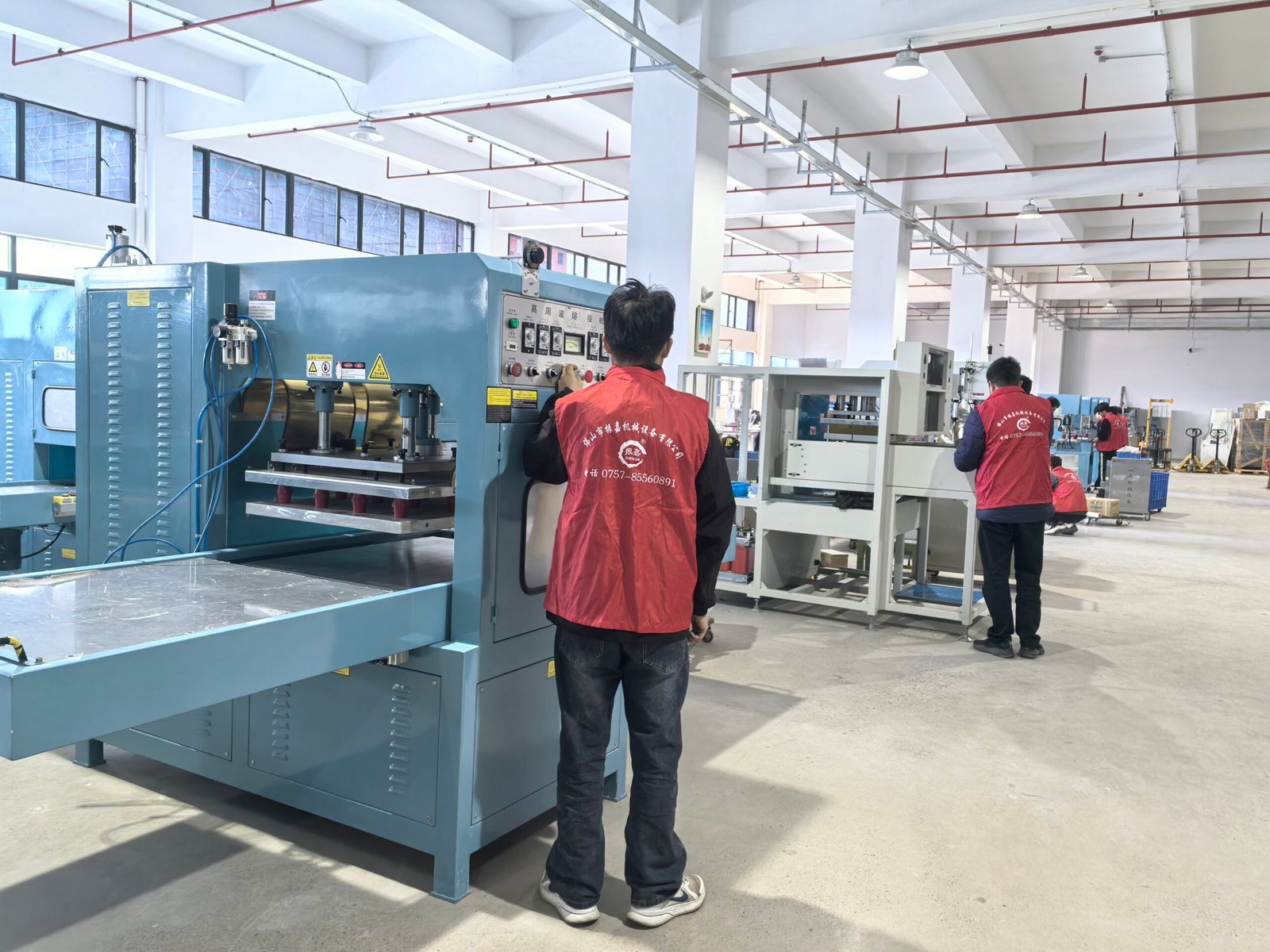

Excess power is the most common cause of RF welding material sticking mold problems. When the generator delivers more energy than the material needs for fusion, the excess heat spreads outward from the bond interface into the surrounding material — including the surface layer that contacts the die.

What Happens When Power Is Too High

The bond interface reaches fusion temperature quickly. But the generator keeps running, delivering additional energy that the already-fused material cannot absorb productively. The excess energy heats the outer surface above its melting temperature. The surface becomes tacky — sometimes visibly shiny or even partially liquefied. When the press opens, this overheated surface adheres to the die face.

Overheating also degrades the material around the weld zone. You may notice yellowing, surface gloss changes, or a slightly burnt smell at the seam edge. These are indicators that power has exceeded the material’s thermal tolerance, not just its fusion temperature.

How to Fix It

Reduce power in 5 to 10 percent increments. Run test welds after each reduction. Stop when sticking resolves while the peel test still shows adequate bond strength. The goal is the minimum power that achieves full fusion — not the maximum the machine can deliver.

If reducing power eliminates sticking but also weakens the bond, the issue is more complex — the power setting is simultaneously too high for release and insufficient for full-depth fusion. This indicates a secondary problem: weld time is too short, pressure is insufficient, or the backup material needs replacement. Address those variables before returning to power adjustment.

Cause 2: Weld Time Too Long

Weld time and power interact. Too much of either — or both — produces the same overheating result. Long weld times at moderate power can overheat the material surface just as effectively as high power at short weld times.

Why Extended Dwell Causes Surface Adhesion

During the weld cycle, heat diffuses outward from the bond interface toward both material surfaces. The longer the generator runs, the more heat reaches the outer surface layers. At some point the outer surface crosses the adhesion threshold — the temperature at which soft PVC or PU grips metal rather than releasing from it. Short weld times keep less heat in the system and reduce the risk of the surface reaching this temperature.

How to Fix It

Shorten weld time in 0.5-second increments while monitoring bond quality with the T-peel test. The correct weld time is the shortest duration that consistently produces material-tear failure on the peel test. Anything beyond that adds heat without adding bond strength — and increases sticking risk.

If you need a longer weld time to achieve adequate bond depth but sticking occurs at that time, the solution is to reduce power proportionally so that the total energy delivered stays constant while the rate of delivery slows. Slower heating gives the outer surface more time to dissipate heat into the electrode during the weld — reducing peak surface temperature without reducing total fusion energy.

Cause 3: Cooling Time Too Short

This is the most straightforward cause of HF welding material sticking to die problems and the easiest to fix. Cooling time that is too short releases the material before the surface has cooled to its release temperature. The weld may be perfectly formed — full fusion, correct geometry — but the surface is still tacky when the press opens.

How to Identify It

If material sticks consistently at the start of the shift but becomes worse as the shift progresses, cooling time is almost certainly the cause. As the electrode heats up through successive cycles, it retains more thermal energy between cycles. Later cycles have a warmer starting electrode — which means less heat drains from the material into the electrode during cooling, and the surface temperature at press opening is higher than it was earlier in the shift.

If sticking occurs on every cycle regardless of shift position, cooling time may still be the cause — but the setting was simply never correct from the beginning rather than drifting during the shift.

How to Fix It

Increase cooling time in 0.5-second increments until sticking resolves. A practical starting guideline is cooling time equal to approximately 20 percent of weld time — so a 4-second weld suggests at least 0.8 seconds of cooling as a minimum. For thicker materials, larger die areas, or high-surface-temperature applications like TPU or rigid PVC, this ratio should be higher.

For the electrode temperature drift problem that worsens through the shift: increase cooling time slightly after the first 30 to 60 minutes of production, once the electrode reaches working temperature. Alternatively, reduce power slightly at that point — a lower power setting generates less surface heat per cycle, reducing the cooling requirement.

Cause 4: No Buffer Material, or Degraded Buffer

Buffer material on the lower table serves multiple functions — but one of its less obvious roles is preventing PVC sticking to electrode on the lower surface. When buffer material is missing or degraded, the lower material layer contacts metal directly. The effects reach both surfaces of the weld.

What the Buffer Material Does for Release

The buffer layer insulates the lower PVC surface from the metal table. This slows heat transfer from the material into the table, keeping the material warmer during the weld cycle — which is what you want for efficient fusion. But it also prevents direct metal-to-plastic contact on the lower surface, which would otherwise create a second sticking surface.

A buffer pad that has compressed, burned, or contaminated through repeated use loses both of these properties. Compressed buffer material allows direct contact between the PVC and the metal table. Burned buffer material leaves residue that transfers to the PVC surface and creates new adhesion points. Both conditions promote sticking on the lower surface even when the upper die parameters are correct.

How to Fix It

Replace the buffer material. This takes two minutes. Use the correct type for your application: cardboard or felt for standard flexible PVC, Mylar or silicone glass fabric for higher-temperature applications, PTFE sheet for materials with high sticking tendency. Production Engineering’s RF sealing reference notes that Bakelite, Mylar, silicone glass, and Teflon are all excellent buffer materials that “help materially in improving the seal” by insulating effectively without degrading under repeated HF exposure.

Inspect and replace buffer material at the start of every shift. Never run production on a buffer pad that shows visible burn marks, compression deformation, or surface contamination. The cost of a buffer pad replacement is negligible. The cost of sticking damage to the die surface and the finished product is not.

Cause 5: Die Surface Contamination or Roughness

A die surface that has accumulated PVC residue, carbon deposits, or micro-pitting from previous arcing events creates mechanical adhesion points that hold softened material even when thermal conditions are correct.

How Contamination Builds Up

Every welding cycle produces a small amount of outgassing from the PVC or PU surface. Plasticizers and stabilizer compounds volatilize slightly under the combination of heat and electromagnetic energy. These compounds deposit on the die surface as a thin film. Over time, this film carbonizes and creates a rough, adhesive layer that grips the material mechanically on each subsequent cycle.

Arc events accelerate this process dramatically. A single arcing episode can pit the die surface and deposit carbonized material across the arc zone. Those pits and deposits then act as sticking points for every cycle that follows.

How to Fix It

Clean the die surface at the start of each shift and after any arc event. Wipe with a clean, dry cloth first to remove loose deposits. For heavier carbonized buildup, use a soft brass wire brush in the direction of any surface grain. Never use steel wool, steel brushes, or abrasive compounds — these leave conductive metallic residue in the die surface that accelerates future arcing and sticking.

For dies with significant surface pitting from arc damage, polishing the contact face restores a smooth surface that releases material cleanly. Light polishing with 400-grit and then 600-grit wet-dry paper, followed by metal polish, removes minor pitting without significantly changing die geometry. Dies with deep pitting or erosion may need reconditioning by the tooling manufacturer.

Cause 6: Electrode Leveling — Uneven Contact Pressure

An unlevel electrode creates uneven contact pressure across the die face. The high-contact zones press too firmly into the material — overcompressing it and pushing more heat into the surface layer than the cooling period can remove. Those high-pressure zones are exactly where sticking occurs most severely.

Why Uneven Pressure Creates Localized Sticking

HF energy concentrates where electrode contact is most intimate. A slightly raised die corner contacts the material first and with more force than the rest of the die. More electromagnetic field concentrates there. More heat develops there. That zone overheats while the rest of the die welds correctly. When the press opens, the overheated corner zone sticks while the rest releases cleanly.

This produces a characteristic sticking pattern: one corner or edge of the die leaves residue while the opposite corner releases without issue. This pattern distinguishes a leveling problem from a power or cooling problem, which would affect the whole weld area more uniformly.

How to Fix It

Re-level the electrode. Place a flat material sample on the lower table and lower the electrode by hand — not under power — until it contacts the material surface evenly across its full width. Adjust leveling screws at each corner until contact is uniform. Re-check after tightening final fasteners. Re-level every time you change dies.

Solution 1: PTFE Coating on the Die Face

For materials with a persistent sticking tendency — certain PU grades, EVA foam, and some TPU formulations — Teflon coating on the HF welding die provides a permanent release surface that reduces sticking regardless of parameter variation.

How PTFE Coating Works

PTFE has one of the lowest surface energy values of any solid material. Softened PVC, PU, or TPU cannot bond to it chemically or mechanically. As one RF welding equipment source confirms: “A coating of PTFE can also be applied to electrode surface to prevent adherence of the melting plastic.”

The coating is applied to the die face as a thin layer — typically 25 to 50 microns — using a spray or dip application process followed by sintering. The coating does not significantly change die geometry, does not affect the electromagnetic field distribution, and does not require changes to welding parameters. It simply prevents the softened material from gripping the die surface.

When to Use It

PTFE die coating is particularly useful for applications where parameter optimization alone cannot fully eliminate sticking. These include: materials with high tack at welding temperatures (certain EVA and PU grades), applications where weld time cannot be shortened further without sacrificing bond strength, and high-speed production where extended cooling time would reduce output rate below acceptable levels.

PTFE coating also extends die life by reducing the mechanical abrasion that occurs when tacky material is pulled from an uncoated surface on every cycle. This reduces the frequency of die polishing and reconditioning over the tooling lifetime.

Limitations

PTFE coatings wear over time with continuous use. The coating requires periodic inspection and reapplication — typically every six to eighteen months depending on production intensity. A worn PTFE coating that has developed bare patches causes uneven release and may require full die reconditioning before recoating. Track coating condition as part of the regular tooling maintenance schedule.

Solution 2: Release Spray as a Short-Term Fix

PTFE release spray applied directly to the die face before each production cycle provides temporary release improvement without permanent coating. This is a practical short-term solution when die coating is not immediately available or when you need to resolve sticking during an ongoing production run.

How to Apply It

Apply a very thin, even coat of PTFE release spray to the clean die face. Allow it to dry for 30 seconds before the first cycle. Reapply every 20 to 50 cycles depending on sticking tendency — more often for materials with high tack, less often for standard PVC grades.

Use food-grade or production-grade PTFE spray rather than general-purpose silicone spray. Silicone residue transfers to the PVC surface and can interfere with subsequent printing, bonding, or adhesive operations on the finished product. PTFE spray leaves minimal residue and does not create secondary contamination problems.

When It Is Not Enough

Release spray is a maintenance tool, not a process fix. If the underlying parameter problem is severe enough, spray will reduce but not eliminate sticking. Use spray to get through an urgent production run while you identify and address the root cause — then eliminate spray once the root cause is fixed. Relying permanently on spray to manage a parameter problem masks an issue that will eventually cause more serious defects than sticking.

Solution 3: Material-Specific Adjustments

Some materials have inherently higher sticking tendency than others at equivalent welding temperatures. Recognizing material-specific sticking behavior allows targeted parameter adjustment rather than generic troubleshooting.

EVA Foam

EVA foam is particularly prone to sticking because it compresses significantly under the electrode and rebounds slightly on release — creating a mechanical suction effect in addition to thermal adhesion. Extending cooling time allows the foam to cool and stiffen before the press opens, reducing both thermal adhesion and the rebound suction effect. Some operators also place a thin Mylar or PTFE sheet between the EVA surface and the electrode specifically for EVA lamination operations.

Rigid and Semi-Rigid PVC

Rigid PVC requires higher temperatures to achieve fusion than flexible PVC. This higher process temperature increases the risk of the outer surface reaching the adhesion range before the electrode’s heat sink effect can cool it sufficiently. Extended cooling time is essential. Heated platen machines that maintain consistent die temperature — rather than allowing the die to fluctuate with ambient conditions — produce more consistent release on rigid PVC than cold-die machines.

PU and Soft TPU Grades

Softer PU and TPU grades have lower fusion temperatures than PVC but also lower release temperatures. The process window between “fused” and “stuck” is narrower. Parameters must be set more precisely, and PTFE die coating is often worth applying from the beginning rather than waiting for sticking to become a persistent problem.

Daily Prevention Checklist

Most HF welding material sticking to die problems are preventable with consistent daily practice. Run through this checklist at the start of each shift.

Clean the die face. Wipe with a dry cloth. Inspect for carbon deposits, arc pitting, or residue. Clean with a brass brush if buildup is present. Apply PTFE release spray if the material grade warrants it.

Replace or inspect buffer material. Check for compression, burn marks, and surface contamination. Replace if any damage is visible. A degraded buffer is the fastest path to lower-surface sticking and arcing problems simultaneously.

Verify electrode leveling. Lower the electrode by hand onto a flat material sample and confirm even contact across the full die width. Uneven contact means uneven heat distribution — which means the high-contact zones will stick first.

Check cooling time setting. Confirm it matches the setting established during the last validated production run for this material and product. Do not assume stored settings are still correct if the material supplier has changed or the room temperature is significantly different from previous runs.

Run warm-up cycles on scrap before production material. The first five to ten cycles on a cold machine always have different thermal characteristics than cycles run on a warm electrode. Warm-up cycles bring the die to a stable starting temperature and reveal sticking tendency before it damages production parts.

Frequently Asked Questions

Why does PVC stick to the die at the end of the shift but not at the start?

This is electrode temperature drift. As the die accumulates heat from successive cycles, the surface temperature at press opening is higher than it was when the machine was cold. Material that cooled adequately in the first hour of production no longer cools sufficiently once the electrode is warm. Increase cooling time progressively through the shift — or reduce power slightly once the electrode reaches working temperature — to maintain consistent release quality from first cycle to last.

Does Teflon coating affect weld quality?

No, when applied correctly. A properly applied PTFE coating is electrically inert and does not affect the electromagnetic field distribution between the electrode and the material. Weld quality, seam geometry, and bond strength are unchanged. The coating prevents adhesion at the die surface without interfering with the fusion process occurring at the material interface below the surface. Die geometry is not meaningfully changed by a coating thickness of 25 to 50 microns.

Can I use silicone spray instead of PTFE spray as a release agent?

Silicone spray provides release but leaves a silicone residue on the PVC surface. This residue interferes with subsequent operations — printing, adhesive bonding, heat sealing with other materials — because silicone has very low surface energy and prevents adhesion. PTFE spray leaves minimal residue and is the correct choice for HF welding applications. Avoid silicone-based release agents on any part that requires downstream bonding or surface treatment.

What buffer material is best for preventing lower-surface sticking on PVC?

For standard flexible PVC, cardboard or felt provides adequate insulation and release properties. For materials with higher sticking tendency — rigid PVC, EVA foam, certain PU grades — Mylar (polyester film) or PTFE sheet provides better release because neither bonds to softened thermoplastics. Production Engineering’s RF sealing reference confirms that Teflon, Mylar, and silicone glass are all effective buffer materials for HF welding applications. Replace whichever type you use at the start of each shift regardless of apparent condition — degraded buffer material causes problems that are not always visible until production quality suffers.

My die sticks on one corner but releases cleanly everywhere else. What is the cause?

Localized single-corner sticking is almost always an electrode leveling problem. The sticking corner contacts the material with more pressure than the rest of the die. More electromagnetic field concentrates there. More heat develops there. That corner overheats while the rest of the die cycles correctly. Re-level the electrode — pay particular attention to the corner that sticks — and verify uniform contact across the full die face before resuming production.

How often should I have the die face reconditioned if sticking damage is accumulating?

Surface pitting from arc events and micro-roughness from repeated sticking damage should be addressed before it becomes severe enough to require machining. Light polishing with fine-grit wet-dry paper and metal polish every one to three months — depending on production intensity — maintains a smooth release surface and extends tooling life. Significant pitting that polishing cannot correct requires machining by a tooling supplier. Applying PTFE coating after polishing provides ongoing protection and reduces the frequency of reconditioning cycles.
