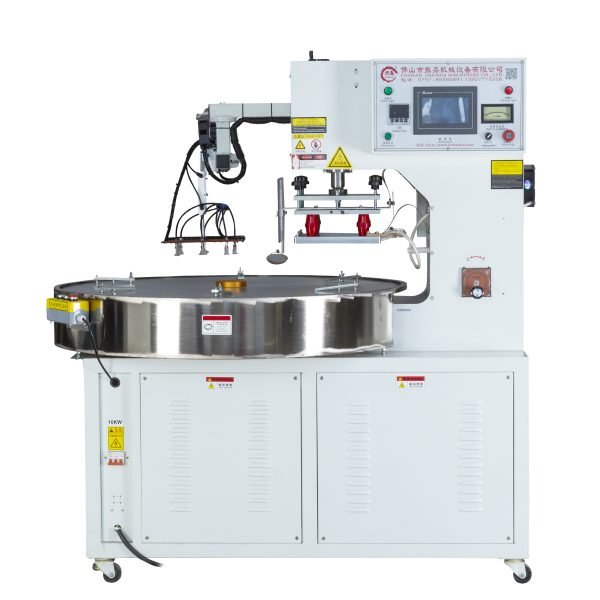

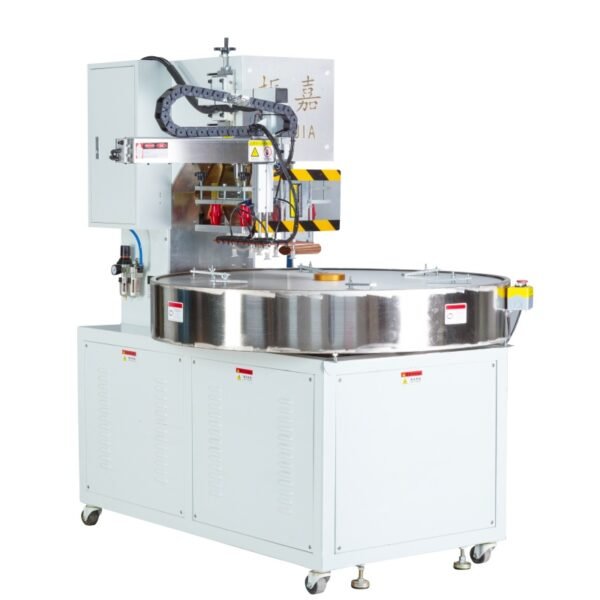

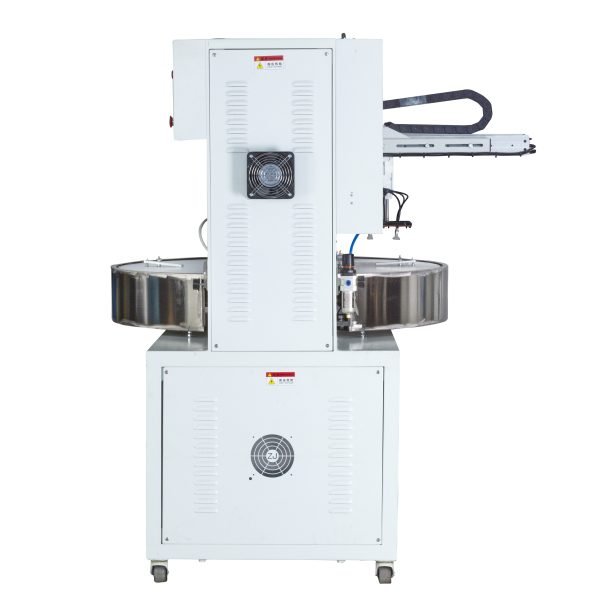

ZJ-8K-ACRB Automatic High Frequency Machine With Manipulator (Four stations )

Zhenjia Four Station Automatic High Frequency Welding Machine with Manipulator – The upper and lower mold alignment is accurate, simple operation and easy maintenance. This machine is a 360 degree disk rotation, divided into four working positions. The rotary table is equipped with digital inverter to drive the motor, frequency converter control the speed of the rotary table, and the digital display can be adjusted. The machine is equipped with PLC touch screen control, easy to operate, high efficiency and energy saving.

Model: ZJ-8K-ACRB. This machine is equipped with high sensitivity 5557 fireproof protection device, which plays a great role in protecting the high frequency mold and production products. It can reduce by 95% probability of mold fire. This machine can be operated by one person and save labor.

Foshan Zhenjia Machinery Co., LTD. is a professional high frequency welding machine manufacturer. The machine quality has passed the EU CE quality export test and ISO9001 machine quality test. We provide free plate proofing for customers’ samples, teach the whole process of product production and provide production plans.

Application: Can be used for PVC, TPU, EVA or contain 10% PVC of any soft or hard plastics, plastics, artificial leather, clothing fabrics can be thermal bonding, welding, sealing and packaging.

Application Industry: Mainly used in plastic packaging industry, automobile industry, clothing industry, medical industry, household goods industry, electronic products packaging industry, etc.

Stable Frequency: This kind of machine adopts international industrial band 27.12MHz or 40.68MHz for oscillation frequency, stable output frequency, in line with international standards, suitable for use all over the world.

Spark Protection: When the spark is generated, the special electronic circuit automatically cuts off the high frequency to protect the electrode and products.

Protection Device: Overload current relay automatically protects the oscillating tube and rectifier when the current is over.

1. Check whether the air pressure and circuit are normal before starting each time. Turn off the power switch of the machine panel after each completion of work, and turn off the power switch of the main system later.
2. Lubricating oil is added regularly at the run-in of the machine.
3. Filter regular drainage, (such as: general work after half a day to drain the filter water) add lubricating oil.
4. Keep the equipment surrounding clean and good heat dissipation.
5. The equipment is stored in a dry and dust-free place. Clean the inside of the electric box once or twice a month. If you do not work for a long time, be sure to cover the machine with cloth to prevent dust from entering the machine.
6. If the oscillator tube is used for the first time or after a long period of use, it must be preheated for more than half an hour to extend its service life.
7. After using the machine for a week or half a month, turn off all power sources, open the case and use an air gun to blow out the dust, as dust makes the machine more prone to malfunction.
