5KW Oil Pressure High Frequency Machine

5KW Oil Pressure High Frequency Machine

1. Model:ZJ-5K-Y

2. Product Name: 5KW Oil Pressure High Frequency Machine

3. Electronic Tube:777Huaguang

4. Time relay:Taiwan CKC

5. Fan:Taiwan Sanju

6. Intermediate relay:Omron, Japan

7. Applicable:Leather embossing, Logo embossing, shoe embossing, Clothes embossing

  • Facebook
  • Skype
  • Twitter
  • Whatsapp
  • Linkedin
  • QQ

5KW Oil Pressure High Frequency Machine



         5KW Oil Pressure High Frequency Machine suitable for leather embossing, Logo embossing, clothing embossing. It can emboss product stability and no rebound. Our oil pressure high frequency machine has passed ISO9001 quality test and have EU CE export quality certification.



5KW Oil Pressure High Frequency Machine








5KW Oil Pressure High Frequency Machine Electronic Oscillator



5KW Oil Pressure High Frequency Machine Electronic Oscillator



         The filament of the electronic oscillation tube in our company's high-frequency barrel adopts high-quality filaments imported from Austria.


         Main feature of the 5KW electronic oscillation tube:

        1. Its performance is stable, the machine can provide energy stably during the process of working.

        2. Longer service life and stable performance can ensure that the oscillating tube in the high frequency barrel can reduce the damage caused by other reasons, and the use of more excellent materials.

        3. Better working efficiency, stable performance, excellent materials can effectively conduct energy, so that the machine works more efficiently.

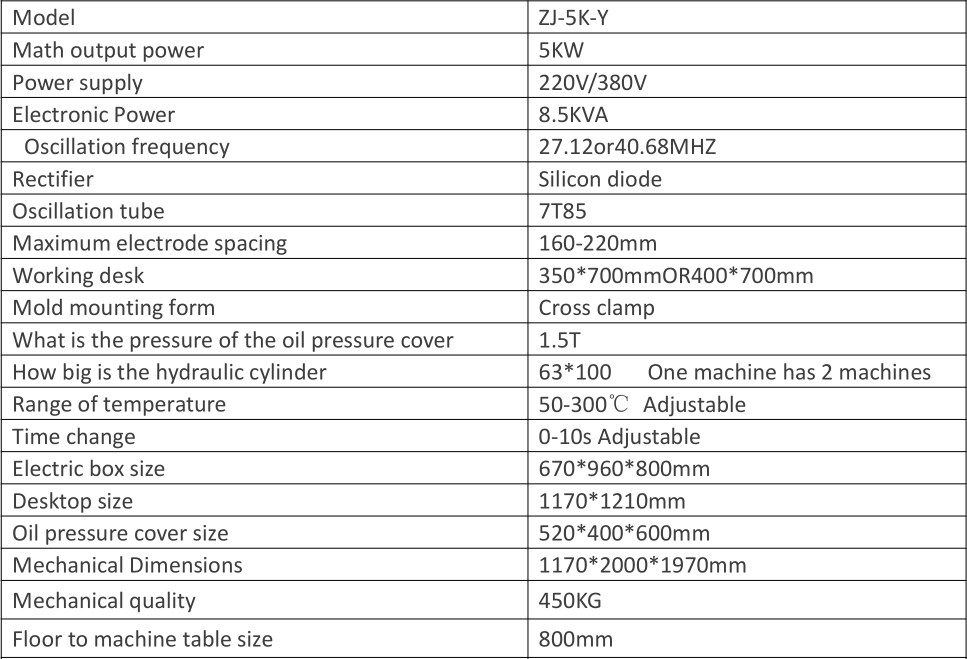

5KW Oil Pressure High Frequency Machine Parameter



5KW Oil Pressure High Frequency Machine Parameter








5KW Oil Pressure High Frequency Machine Daily Maintenance



            1. Check the air pressure and whether the circuit is normal before starting each time; turn off the power switch on the panel of the machine after each work is completed, and then turn off the main power switch after five minutes.

         2. Lubricate the machine running-in place regularly.

         3. The filter is drained regularly, (for example, the water in the filter has to be drained after one time) and lubrication.

         4. Keep the periphery of the equipment clean and have good heat dissipation.

         5. The equipment is stored in a dry and dust-free place. Clean the inside of the cabinet once or twice a month. If you do not work for a long time, you must cover the machine with a cloth to prevent dust from entering the machine.

         6. If the oscillating tube is used for the first time or after a long period of time, it must be preheated for more than half an hour to extend the use time of the oscillating tube.








5KW Oil Pressure High Frequency Machine Mould



5KW Oil Pressure High Frequency Machine Mould



         The mold used by the 5KW Oil Pressure High Frequency Machine will be customized according to the customers' products and the type of machine.



"Click here" to view more.





5KW Oil Pressure High Frequency Machine Production Sample



         Applicable material:PVC,PU,TPU,PE,PET,PETG,APET, etc.

         According to the products produced, the machine has different styles or powers. If you have any questions, please consult us. We will configure the machine according to your product.



5KW Oil Pressure High Frequency Machine Production Sample



"Click here" to view more.






Company's Description



Zhenjia's Factory



          Zhenjia Machinery Co. ,Limited has specialized in 5KW Oil Pressure High Frequency Machine and automatic equipment technology for 19 years, we are a mainly of research and development, producing, sales and after-sales manufacturers.

         We have high precision molds CNC processing machine and other equipment for customers to produce high frequency mold, ultrasonic mold and blister bakelite molds superior services.
         Our cooperation manufacturers have Hisense, Shenzhen DJI- Innovations, Foshan Electrical lighting Company and other well-known enterprise.



"Click here" to view more.






Certification



         This is the certificate of our company. Our machine has passed the ISO9001 quality test and has the European Union CE export certification.

Certification










After-sales service

Our company will provide machine warranty and various after-sales services.

"Click here" for more details.





Contact details

Mobile/whatsapp/WeChat number:+86 18688277195

E-mail:Jack@fszhenjia.com









5KW Oil Pressure High Frequency Machine Packaging



        In order to ensure that the machine is not damaged during transportation, we will pack the machine safely. And how the machine will be transported to the customer's hand. This is the packed machine of 5KW Oil Pressure High Frequency Machine.

5KW Oil Pressure High Frequency Machine Packaging



“Click here” for details.






5KW Oil Pressure High Frequency Machine
